Power Seat Motor Test
CAUTION:
Disconnect power from motor immediately when motor stops.

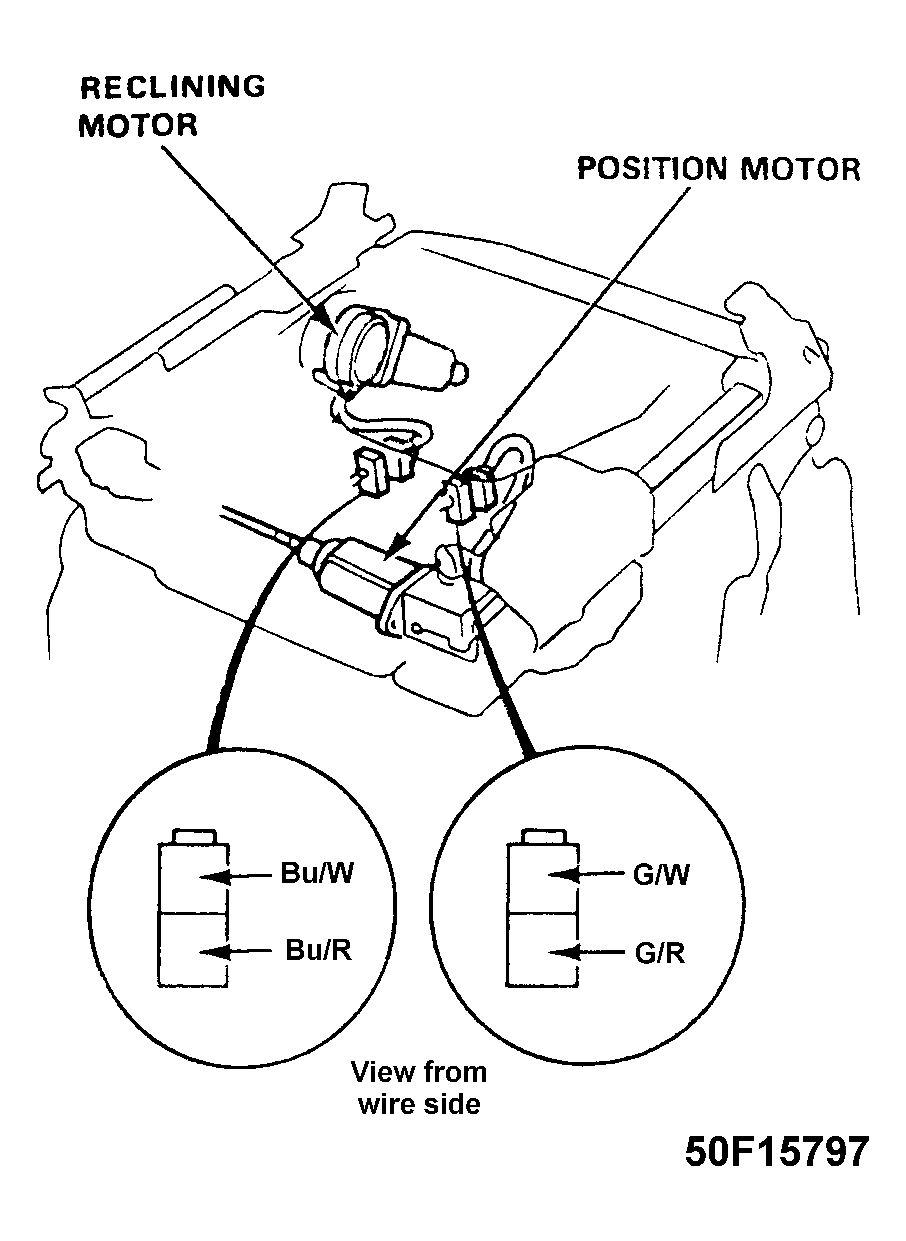

Remove driver's seat. Unplug 2-P connector from relay assembly. Using jumper wires, connect motor terminals to battery voltage and ground according to the POWER SEAT MOTOR TEST table. See WIRING DIAGRAMS for appropriate wire colors. Motor should run smoothly. Replace motor if operation is not as specified. See POWER SEAT MOTOR TEST table.
POWER SEAT MOTOR TEST
| Position | Battery (+) Terminal | Negative (-) Terminal |
|---|---|---|
| Forward Position | Green/Red | Green/White |
| Backward Position | Green/White | Green/Red |
| Forward Recline | Blue/Red | Blue/White |
| Backward Recline | Blue/White | Blue/Red |
