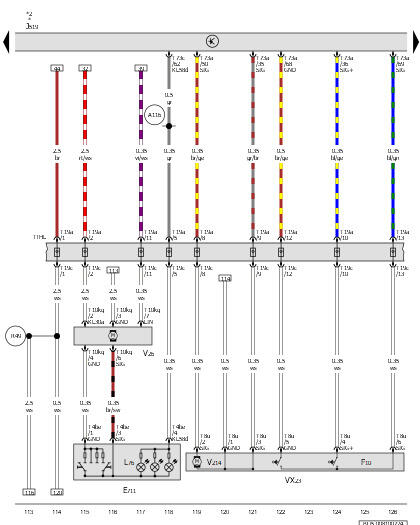

Driver Side Rear Power Window Button, Vehicle Electrical System Control Module, Left Rear Door Lock Unit, Left Rear Window Regulator Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E711

Driver Side Rear Power Window Button

F10

Left Rear Door Contact Switch

J519

Vehicle Electrical System Control Module

L76

Push Button Illumination Bulb

T4be

4-Pin Connector, Black

T8u

8-Pin Connector, Black

T10kq

10-Pin Connector, Black

T19a

19-Pin Connector, Black

T19c

19-Pin Connector, Black

T73a

73-Pin Connector, Black

T73c

73-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

VX23

Left Rear Door Lock Unit

V26

Left Rear Window Regulator Motor

V214

Left Rear Central Locking -Lock- Motor

A116

Connection 58d (in Instrument Panel Wiring Harness) 2

R49

Connection 87A (in Left Rear Door Wiring Harness)

*

Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
