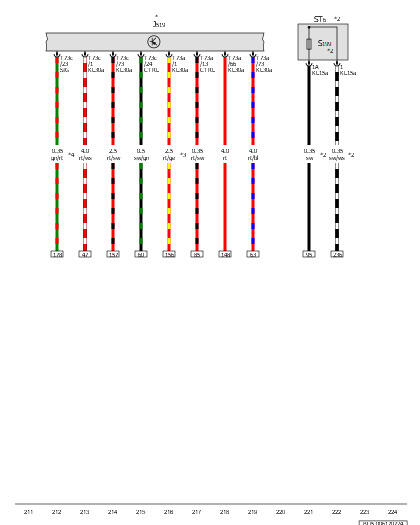

Vehicle Electrical System Control Module, Fuse Panel 6

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

ST6

Fuse Panel 6

S199

Fuse 1 (Terminal 15)

T73a

73-Pin Connector, Black

T73c

73-Pin Connector, Black

*

Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior

*2

For Vehicles with US Equipment

*3

For Vehicles with Seat Heating

*4

For Vehicles with Windshield Defogger
