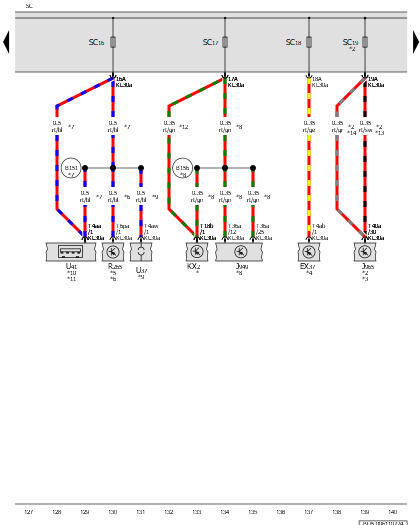

Rear Lid Handle, Control Module For Emergency Call Module And Communication Unit, Access/Start System Interface, Instrument Cluster, Storage Compartment With Cell Phone Interface, Fuse Panel C, USB Charging Socket 1, USB Connection 1
EX37
Rear Lid Handle
J949
Control Module for Emergency Call Module and Communication Unit
J965
Access/Start System Interface
KX2
Instrument Cluster
R265
Storage Compartment with Cell Phone Interface
SC
Fuse Panel C
SC16
Fuse 16 (On Fuse Panel C)
SC17
Fuse 17 (On Fuse Panel C)
SC18
Fuse 18 (On Fuse Panel C)
SC19
Fuse 19 (On Fuse Panel C)
T4aa
4-Pin Connector, Red
T4ab
4-Pin Connector, Black
T4aw
4-Pin Connector, Black
T6pa
6-Pin Connector, Black
T18b
18-Pin Connector, Black
T36a
36-Pin Connector, Black
T40a
40-Pin Connector, Black
U37
USB Charging Socket 1
U41
USB Connection 1
B151
Positive Connection 3 (30a) (in Interior Wiring Harness)
B156
Positive Connection 30a (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Instrument Cluster
*2
For Vehicles with Access/Start Authorization System
*3
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*4
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*5
Refer to the Applicable Cell Phone System Wiring Diagram
*6
For Vehicles with Telephone Charging Station
*7
Depending on Equipment
*8
For Vehicles with Emergency Call Module
*9
For Vehicles with USB Charging Socket
*10
Refer to the Applicable Multimedia System Wiring Diagram
*11
Refer to Applicable Wiring Diagram for Cell Phone Preparation
*12
For Vehicles Without Emergency Call Module
*13
For Vehicles Without US Equipment
*14
For Vehicles with US Equipment
