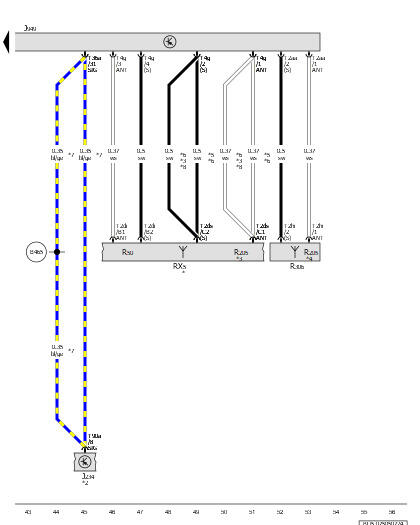

Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Roof Antenna, LTE Antenna 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J949

Control Module for Emergency Call Module and Communication Unit

RX5

Roof Antenna

R50

GPS Antenna

R205

GSM Antenna

R306

LTE Antenna 2

T2aa

2-Pin Connector, Purple

T2di

2-Pin Connector, Blue

T2ds

2-Pin Connector, Purple

T2hi

2-Pin Connector, Purple

T4g

4-Pin Connector, Purple

T36a

36-Pin Connector, Black

T90a

90-Pin Connector, Yellow

B465

Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for the Antennas

*2

Refer to Applicable Airbag Wiring Diagram

*3

For Vehicles with Satellite Radio

*4

For Vehicles Without Satellite Radio

*5

For Vehicles with UNECE Cyber Security

*6

For Vehicles Without Digital Radio

*7

Depending on Equipment

*8

For Vehicles with Radio MIB3
