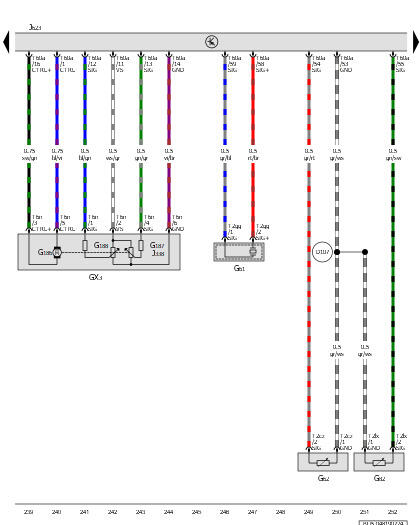

Throttle Valve Control Module, Knock Sensor 1, Engine Coolant Temperature Sensor, Engine Coolant Temperature Sensor On Engine, Engine/Motor Control Module

GWWBU5-048190724Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX3

Throttle Valve Control Module

G61

Knock Sensor 1

G62

Engine Coolant Temperature Sensor

G82

Engine Coolant Temperature Sensor on Engine

G186

EPC Throttle Drive

G187

EPC Throttle Drive Angle Sensor 1

G188

EPC Throttle Drive Angle Sensor 2

J338

Throttle Valve Control Module

J623

Engine/Motor Control Module

T2cz

2-Pin Connector, Black

T2gg

2-Pin Connector, Black

T2lx

2-Pin Connector, Black

T6n

6-Pin Connector, Black

T60a

60-Pin Connector, Black

D107

Connection 5 (in Engine/Motor Compartment Wiring Harness)
