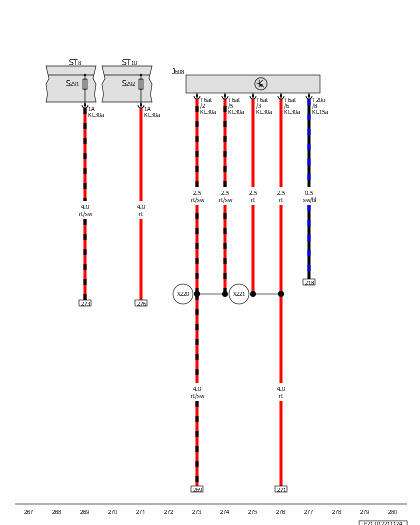

Special Purpose Vehicle Control Module, Fuse Panel 8, Fuse Panel 10

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J608

Special Purpose Vehicle Control Module

ST8

Fuse Panel 8

ST10

Fuse Panel 10

S291

Special Purpose Vehicle Fuse 1

S292

Special Purpose Vehicle Fuse 2

T6at

6-Pin Connector, Blue

T20o

20-Pin Connector, Black

X220

Positive Connection 1 (30a) (in Special Purpose Vehicle Wiring Harness)

X221

Positive Connection 2 (30a) (in Special Purpose Vehicle Wiring Harness)
