Front Longitudinal Member, Replacing: Removing
WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

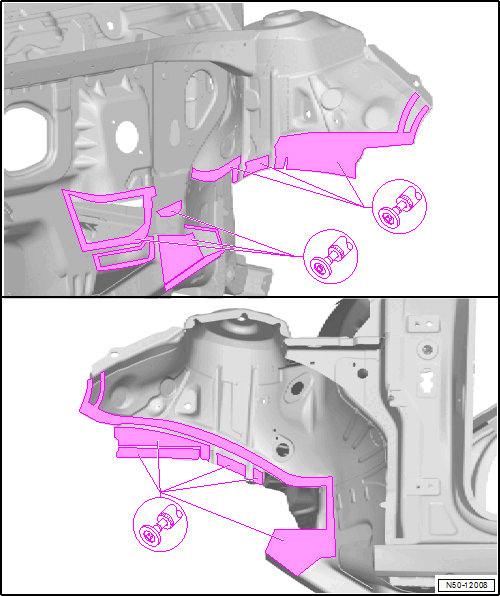

-- Loosen the original joint from the front longitudinal member -1-.
-- Remove the front longitudinal member -1- from the body.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

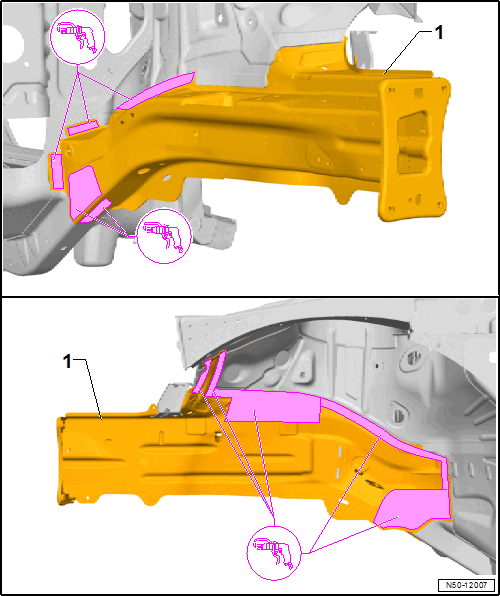

-- Remove any remaining pieces.
-- Grind the welding surfaces down to bare metal.
