Front Window Cut-Out And Front End Diagonal

WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

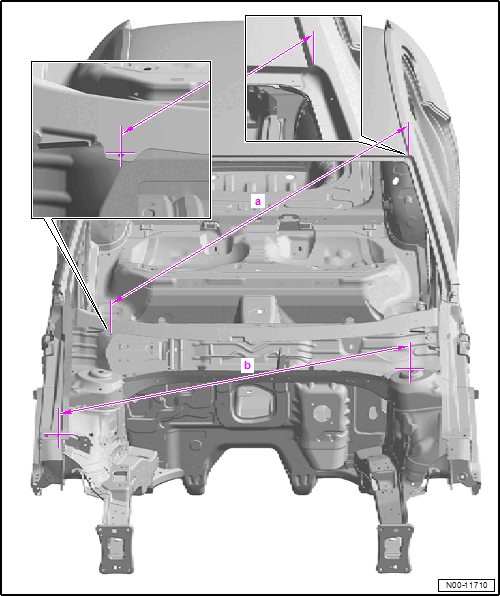

Fig 1: Front Window Cut-Out And Front End Diagonal Dimension And Measurement Points
GWWN00-11710Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a -

    1427 mm ± 2.0 mm

    • Window opening diagonal dimension
  2. b -

    1305 mm ± 2.0 mm

    • Diagonal dimension between the front inner holes on the upper longitudinal member and suspension strut tower
