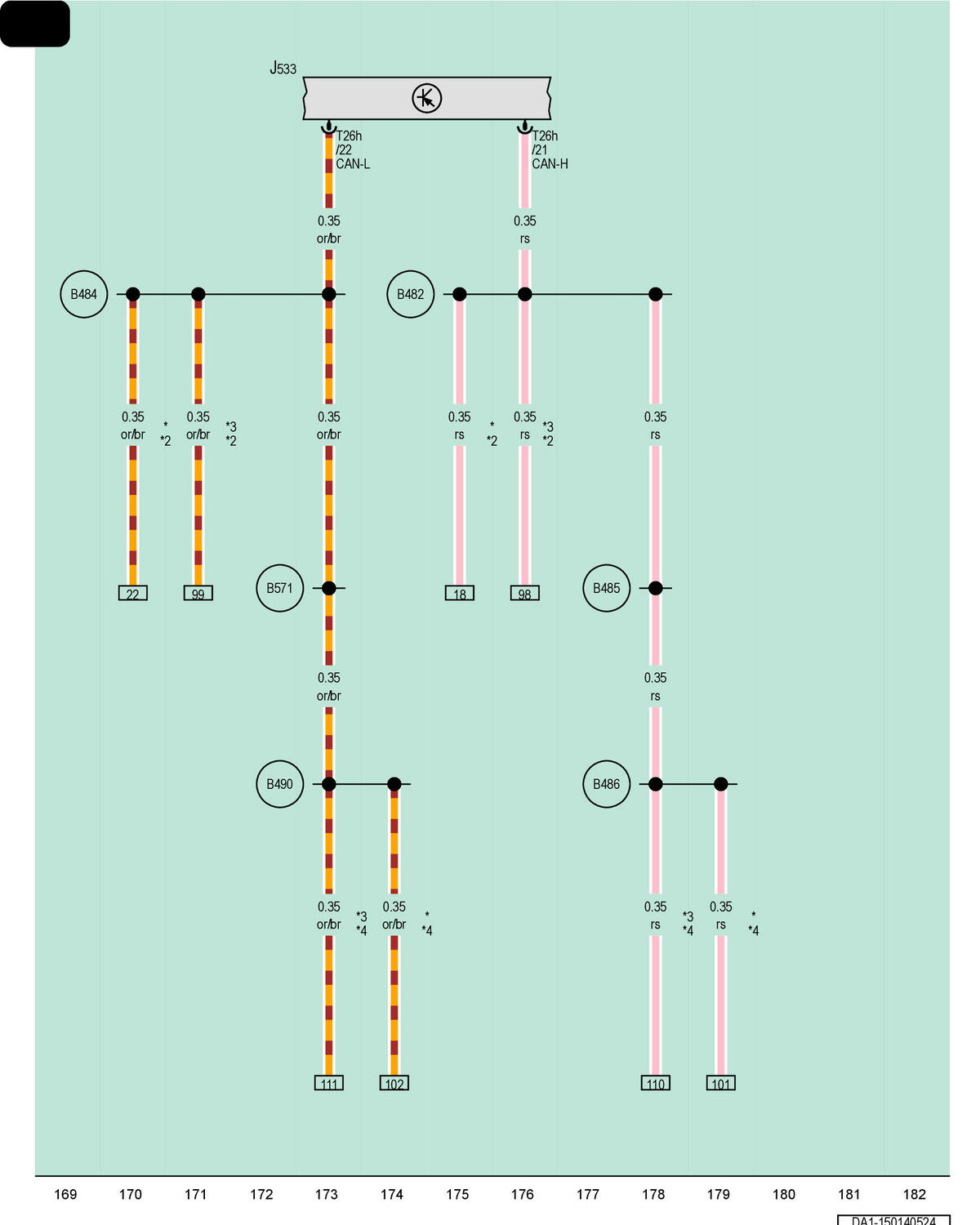

Data Bus On Board Diagnostic Interface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

T26h

26-Pin Connector, Black

B482

Connection 18 (in Main Wiring Harness)

B484

Connection 20 (in Main Wiring Harness)

B485

Connection 21 (in Main Wiring Harness)

B486

Connection 22 (in Main Wiring Harness)

B490

Connection 26 (in Main Wiring Harness)

B571

Connection 38 (in Main Wiring Harness)

*

For Vehicles without Peripheral Camera

*2

For RHD Vehicles

*3

For Vehicles with Peripheral Camera

*4

For LHD Vehicles
