Rear Display And Control Head, Removing And Installing: Removing

-- Remove the rear center console trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

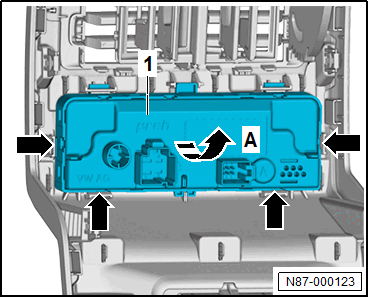

-- Release the hooks -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Rear A/C Display Control Head -E265- -1- in the -direction of the arrow A-.
