Body Dimensions for Windshield Opening

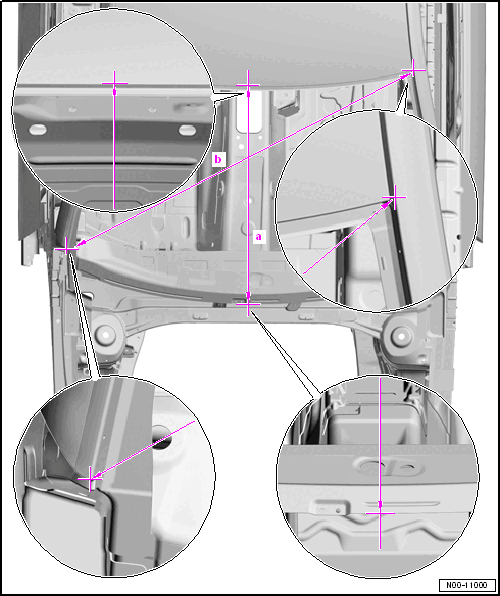

Fig 1: Center Body Dimension And Measurement Points - Body Dimensions For Windshield Opening
GWWN00-11000Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a -

    915 mm ± 2.0 mm

    • Body dimension between roof and cowl trim
  2. b -

    1500 mm ± 2.0 mm

    • Windshield cutout diagonal dimension in between the roof edge and the A-pillar edge.
