Front Longitudinal Member, Replacing, Right Partial Section: Notes

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Sportback and Sedan

Overview

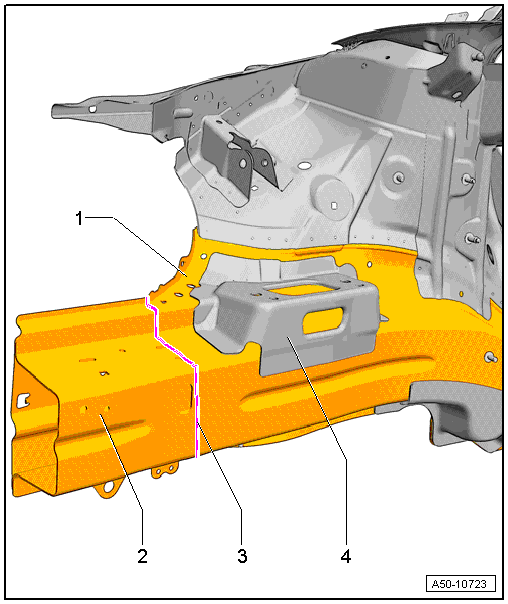

Fig 1: Front Longitudinal Member Components And Cut Locations (Right Partial)

Courtesy of AUDI OF AMERICA, LLC

Right Front Longitudinal Member Cover Plate
Front Longitudinal Member
Longitudinal Member Separation Cut
Engine Bracket
