Floor Assembly

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

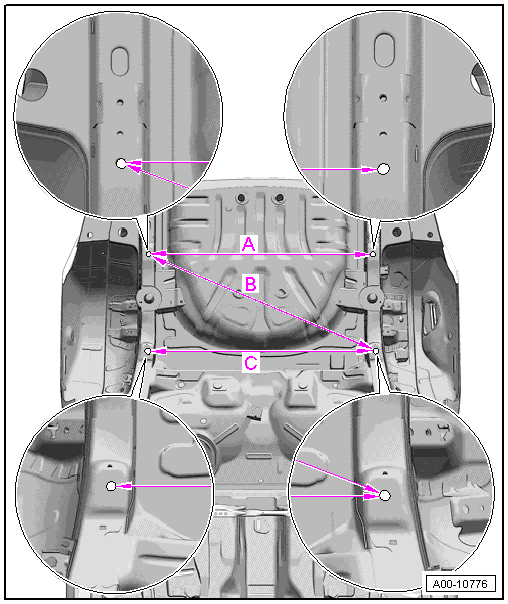

Fig 1: Floor Assembly Dimensions And Measurement Points

Courtesy of AUDI OF AMERICA, LLC

A -
874 mm ± 2.0 mm

Distance between the suspension strut tower mounts
B -
1040 mm ± 2.0 mm

Diagonal dimension between the front longitudinal members
C -
970 mm ± 2.0 mm

Distance between front longitudinal members.

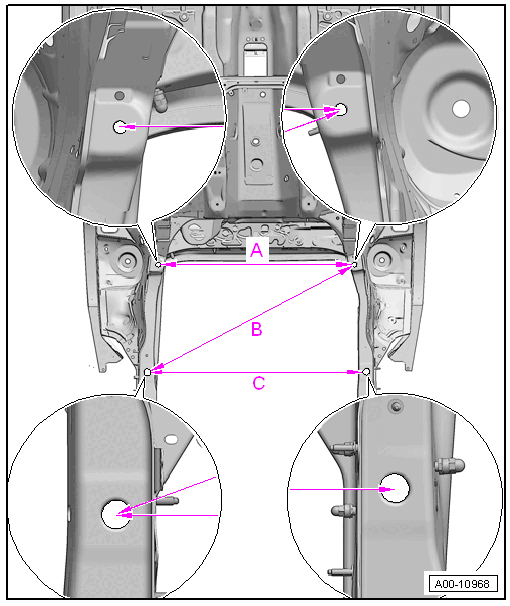

Fig 2: Checking Distance Between Subframe Mountings

Courtesy of AUDI OF AMERICA, LLC

A -
403 mm ± 2.0 mm

Distance between the subframe retainers.
B -
732 mm ± 2.0 mm

Diagonal dimension between the subframe retainers
C -
874 mm ± 2.0 mm

Distance between the subframe retainers.

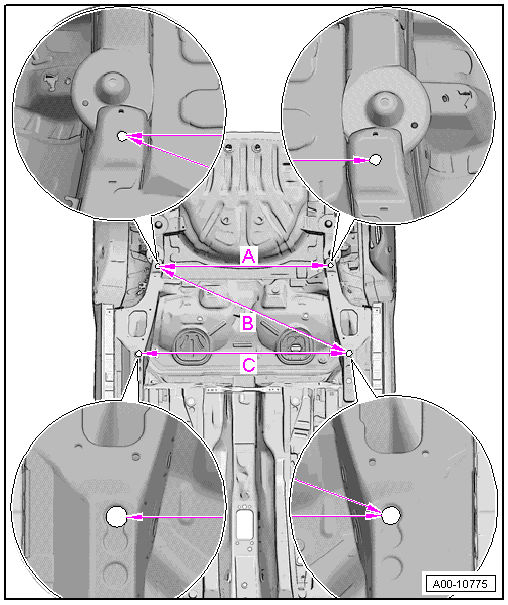

Fig 3: Checking Distance Between Rear Axle Mounts (1 Of 2)

Courtesy of AUDI OF AMERICA, LLC

A -
1000 mm ± 2.0 mm

Distance between the rear axle mounts
B -
1246 mm ± 2.0 mm

Diagonal dimension between the longitudinal members and the axle mounts
C -
1220 mm ± 2.0 mm

Distance between the rear axle mounts

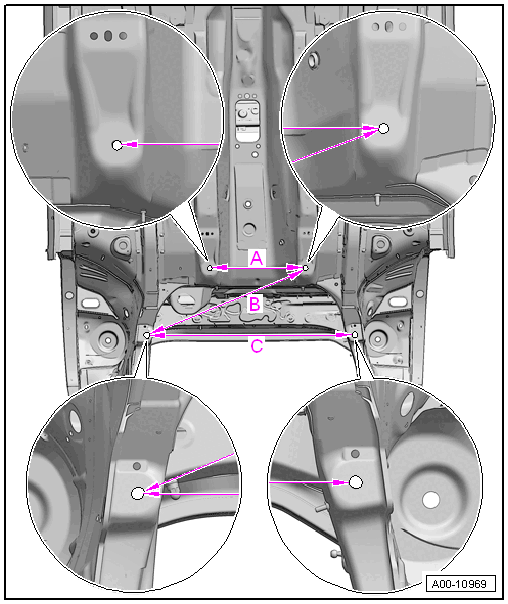

Fig 4: Checking Distance Between Rear Axle Mounts (2 Of 2)

Courtesy of AUDI OF AMERICA, LLC

A -
987 mm ± 2.0 mm

Distance between the rear axle mounts
B -
1085 mm ± 2.0 mm

Diagonal dimension between the longitudinal members and the axle mounts
C -
1000 mm ± 2.0 mm

Distance between the rear axle mounts
