Body Front

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

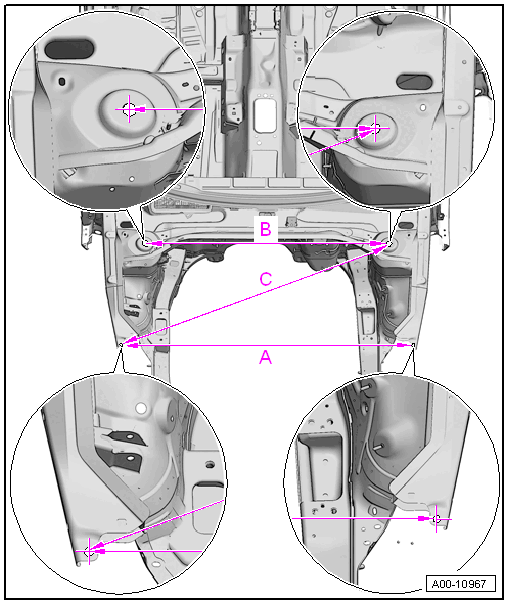

Fig 1: Body Front Dimensions And Measurement Points (1 Of 2)
GWWA00-10967Courtesy of AUDI OF AMERICA, LLC
  1. A -

    1259 mm ± 2.0 mm

    Distance between fender mounts.

  2. B -

    1112 mm ± 2.0 mm

    Distance for suspension strut tower mounts.

  3. C -

    1277 mm ± 2.0 mm

    Diagonal dimension of suspension strut tower mounts.

Fig 2: Body Front Dimensions And Measurement Points (2 Of 2)
GWWA00-10719Courtesy of AUDI OF AMERICA, LLC
  1. A -

    878 mm ± 2.0 mm

    Distance between the impact absorber mounts.

  2. B -

    1072 mm ± 2.0 mm

    Distance between the impact absorber mounts.
