Removing Vehicle with Torsion Beam Axle
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left rear underbody trim panel. Refer to UNDERBODY TRIM PANEL .

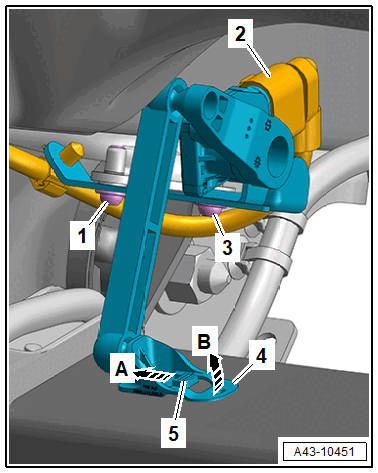

-- Disconnect the connector -2- and free up the wire.
-- Remove the bolts -1 and 3-.
Vehicle with Left Rear Level Control System Sensor -G76- with clipped lever:
-- Release the catch -5- in the -direction of the arrow A- and pivot the sensor lever -4- upward -arrow B- and disengage from the torsion beam axle.
-- Remove the Left Rear Level Control System Sensor -G76-.

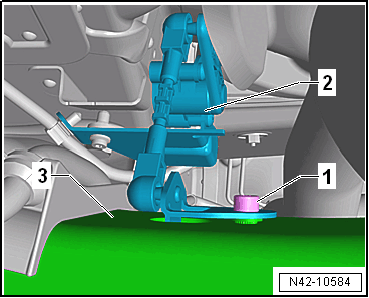

Vehicle with Left Rear Level Control System Sensor -G76- with bolted lever:
-- Remove the bolt -1- and the Left Rear Level Control System Sensor -G76- -2-.
