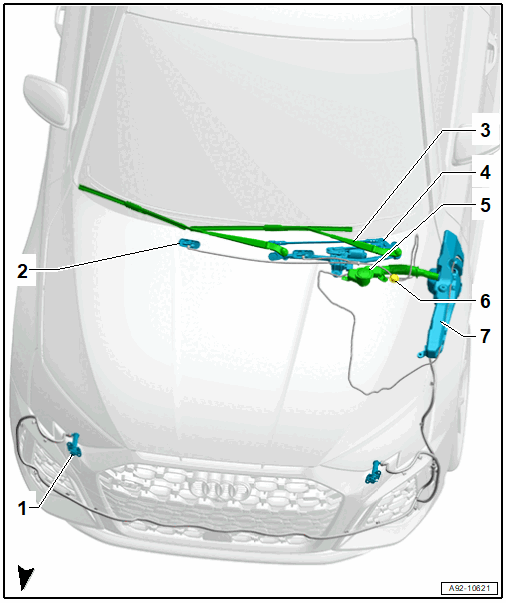

Component Location Overview - Windshield Wiper System, RS3
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Washer System Washer Nozzle
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
- Washer Nozzle, Windshield Washer System
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Windshield Wiper Arm
- RHD: is a mirror image
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Windshield Wiper Motor -V-
- RHD: is a mirror image
- With the Wiper Motor Control Module -J400-
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Filler Neck
- For the washer fluid reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Grommet
- For the windshield washer fluid hose inside the hood
- Washer Fluid Reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
