Left/Right Rear Parallel Parking Assistance Sensor -G716- / -G717-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN REAR SECTION OF VEHICLE .
-- Detach the rear wheel housing liner at area of the bumper and push it aside. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

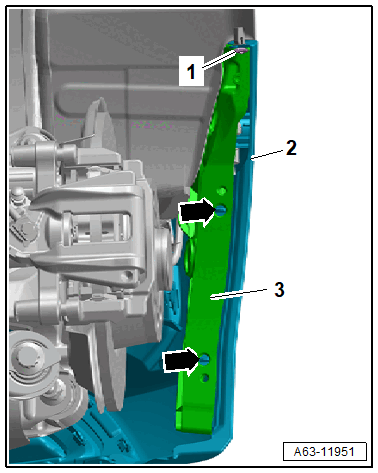

-- Remove the bolt -1-.
-- Release the retaining strip -3- at the retainers -arrows-.
-- Release the bumper cover side piece -2- and pull outward as far as possible.
-- Release the retainers -arrows-.
-- Remove the sensor -1- from the mount.
-- Disconnect the connector -2- by sliding the retainer -3- toward the rear and pressing the release down.
