Radiator Shutter, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S3 and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

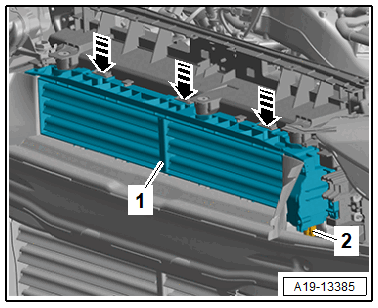

Upper radiator shutter:
-- Disconnect the connector -2- (example illustration above, depending on the model to the left or right side).
-- Release the retainers -arrows-, remove the upper radiator shutter toward the front and disengage upward.

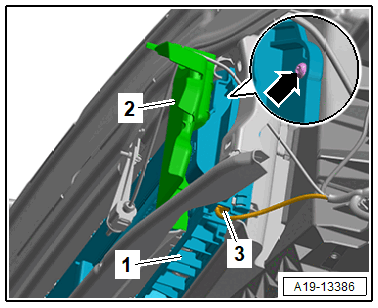

Lower radiator shutter:
-- Disconnect the connector -3-.
-- Unclip the left and right air duct -2-.
-- Remove the left and right bolt -arrow-, remove the radiator shutter -1- downward.
