Overview - Rear Axle Speed Sensor

The overview shows the left side of the vehicle as an example.

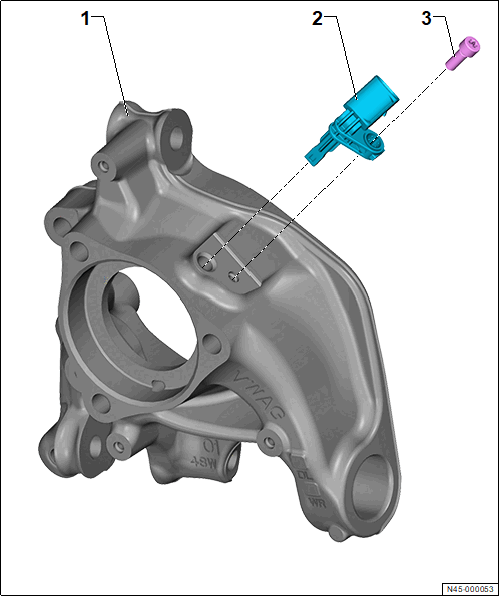

Fig 1: Overview - Rear Axle Speed Sensor, AWD

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Wheel Bearing Housing
   • Refer to OVERVIEW - WHEEL BEARING, AWD .
   • Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
2. Right Rear ABS Wheel Speed Sensor -G44- / Left Rear ABS Wheel Speed Sensor -G46-
   • Refer to Right and Left Rear ABS Wheel Speed Sensor G44/G46, Removing and Installing  .
3. Bolt
   • 8 Nm
