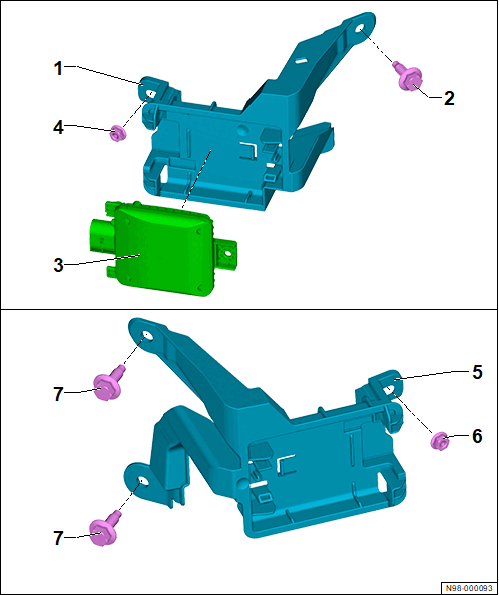

Overview - Lane Change Assistance

GWWN98-000093Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bracket
  2. Bolt
  3. Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-
  4. Nut
    • Quantity: 3
    • 6 Nm
  5. Bracket
  6. Nut
    • 6 Nm
  7. Bolt
