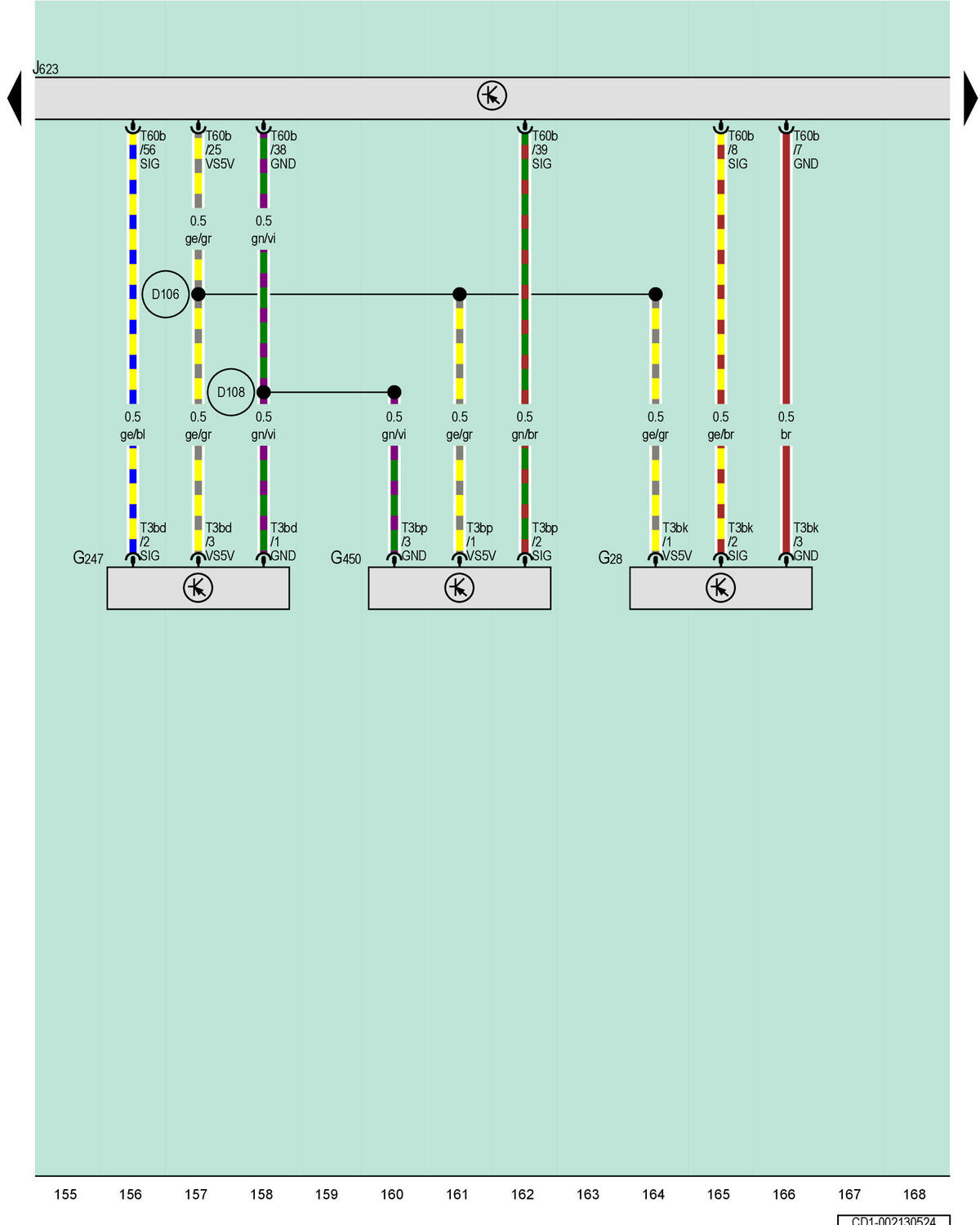

Engine Speed Sensor, Fuel Pressure Sensor, Exhaust Pressure Sensor 1, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G28

Engine Speed Sensor

G247

Fuel Pressure Sensor

G450

Exhaust Pressure Sensor 1

J623

Engine/Motor Control Module

T3bd

3-Pin Connector, Black

T3bk

3-Pin Connector, Black

T3bp

3-Pin Connector, Black

T60b

60-Pin Connector, Black

D106

Connection 4 (in Engine/Motor Compartment Wiring Harness)

D108

Connection 6 (in Engine/Motor Compartment Wiring Harness)
