Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

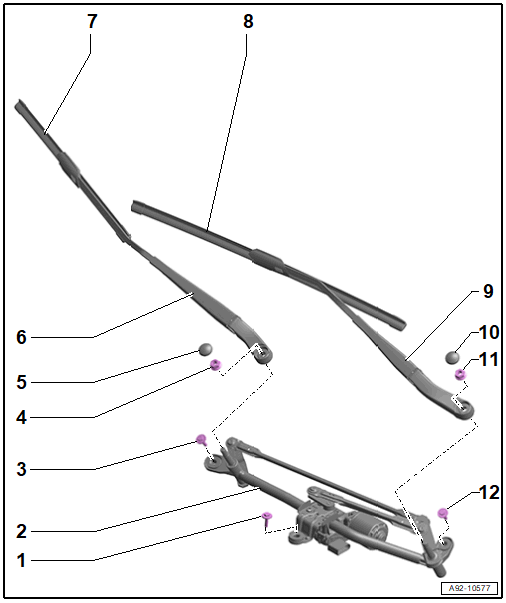

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Bolt
- Tightening sequence. Refer to Fig 2.
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Removing and Installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Bolt
- Tightening sequence. Refer to Fig 2.
- Nut
- 32 Nm
- Cap
- Front Passenger Side Windshield Wiper Arm
- There are different lengths. Refer to the Electronic Parts information (ETKA).
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Front Passenger Side Wiper Blade
- There are different lengths. Refer to the Electronic Parts information (ETKA).
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Wiper Blade
- There are different lengths. Refer to the Electronic Parts information (ETKA).
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths. Refer to the Electronic Parts information (ETKA).
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Cap
- Nut
- 32 Nm
- Bolt
- Tightening sequence. Refer to Fig 2.

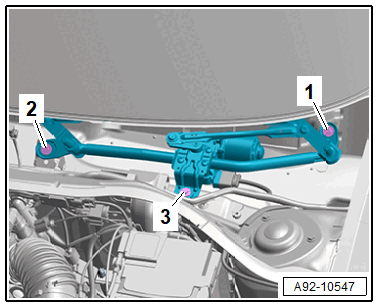

-- Tighten the bolts in the steps in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 to 3- | Install all the way by hand |
| 2. | -1 to 3- | 8 Nm |
