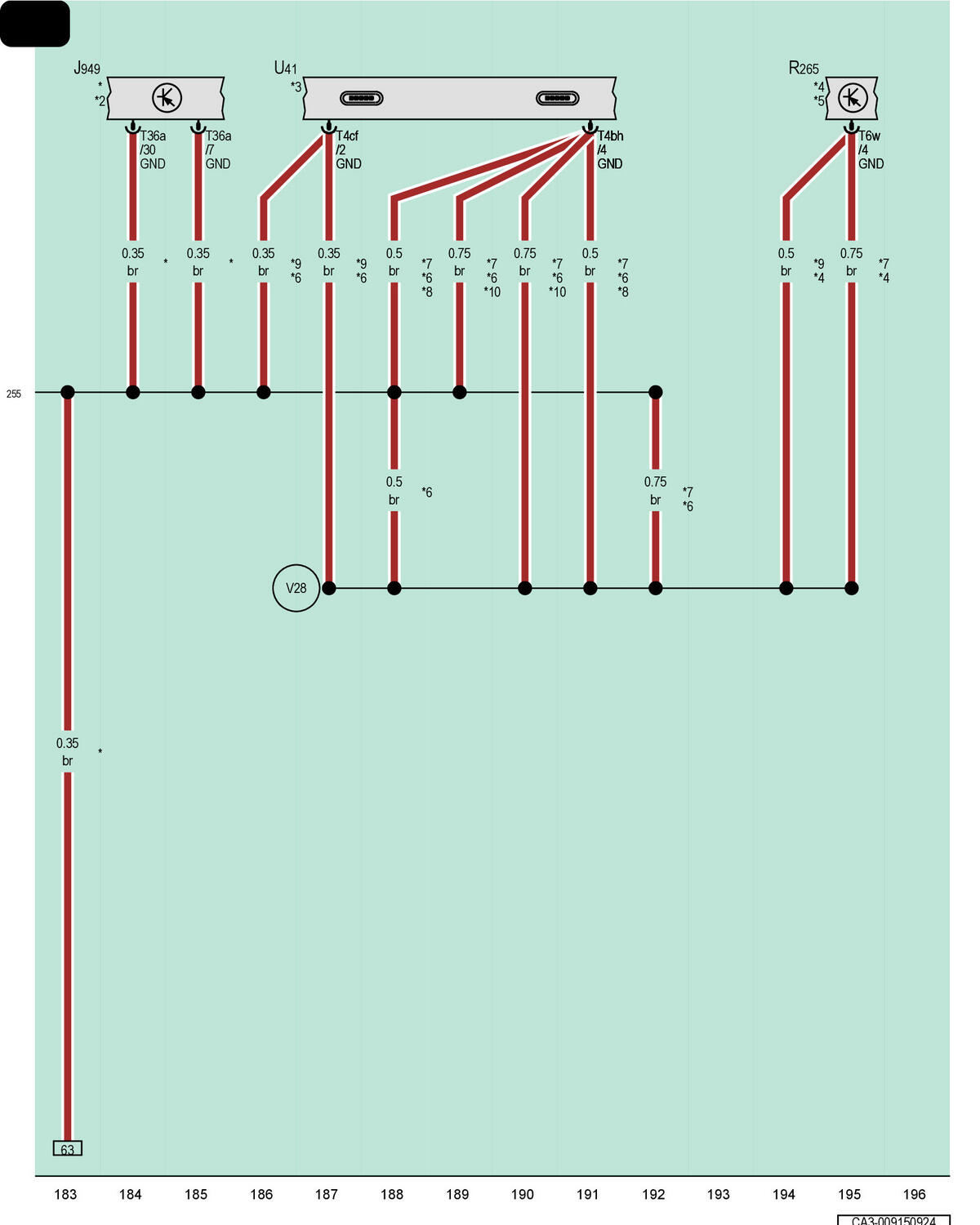

Control Module For Emergency Call Module And Communication Unit, Storage Compartment With Cell Phone Interface, USB Connection 1
J949
Control Module for Emergency Call Module and Communication Unit
R265
Storage Compartment with Cell Phone Interface
T4bh
4-Pin Connector, Blue
T4cf
4-Pin Connector, Red
T6w
6-Pin Connector, Black
T36a
36-Pin Connector, Black
U41
USB Connection 1
255
Ground Connection 1 (in Radio Wiring Harness)
V28
Connection 1 (in Radio Wiring Harness)
*
For Vehicles with Emergency Call Module
*2
Refer to Applicable Emergency Call Module Wiring Diagram
*3
Refer to Applicable Wiring Diagram for USB Connection for Data Transfer
*4
For Vehicles with Telephone Charging Station
*5
Refer to the Applicable Cell Phone System Wiring Diagram
*6
Depending on Equipment
*7
For Vehicles with USB Connection for Increased Charging Capacity
*8
Omitted as a Running Change
*9
Not for Vehicles with USB Connection for Increased Charging Capacity
*10
Running Change
