Control Module, Removing And Installing, All-Wheel Drive Clutch Generation VI: Removing

-- Switch the ignition off.

-- Place the Used Oil Collection and Extraction Unit :SMN372500  under the rear final drive.

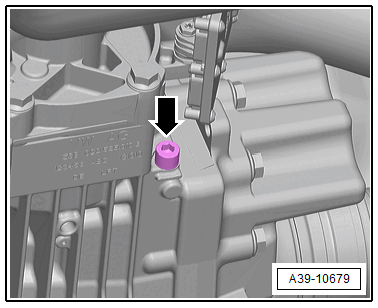

-- Remove the drain plug -arrow- and drain the oil from the all-wheel drive clutch completely.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the new drain plug -arrow- and tighten.

-- Release and disconnect the connector -1- for the All-Wheel Drive Control Module -J492-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Used Oil Collection and Extraction Unit :VAS 6622A  below the coupling point of the All-Wheel Drive Control Module -J492-.

-- Remove the bolts -arrows- and remove the All-Wheel Drive Control Module -J492- out of the all-wheel drive clutch housing.
