Securing On Engine And Transmission Holder
Special tools and workshop equipment required
- Holding Fixture: VW313
- Together with Holding Plate: VW309 for Holding Fixture: VW313
- or Engine and Transmission Holder: VAS6095A
- Together with the Holding Plate: VW309A for Engine and Gearbox Bracket: VAS6095A
- Transmission Support: VW353
Depending on the version of the transmission the : VW353 -1- can be secured on different positions on the transmission.

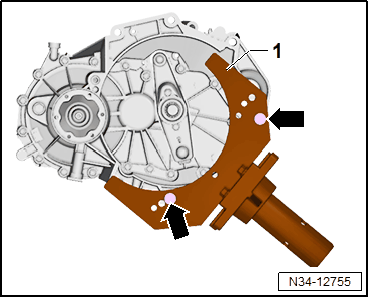

Version 1

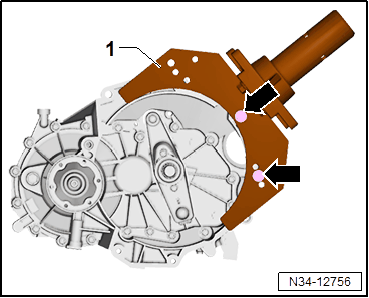

Version 2
Continuation for All
-- Insert the transmission together with the bracket in the Engine/Transmission Holder
