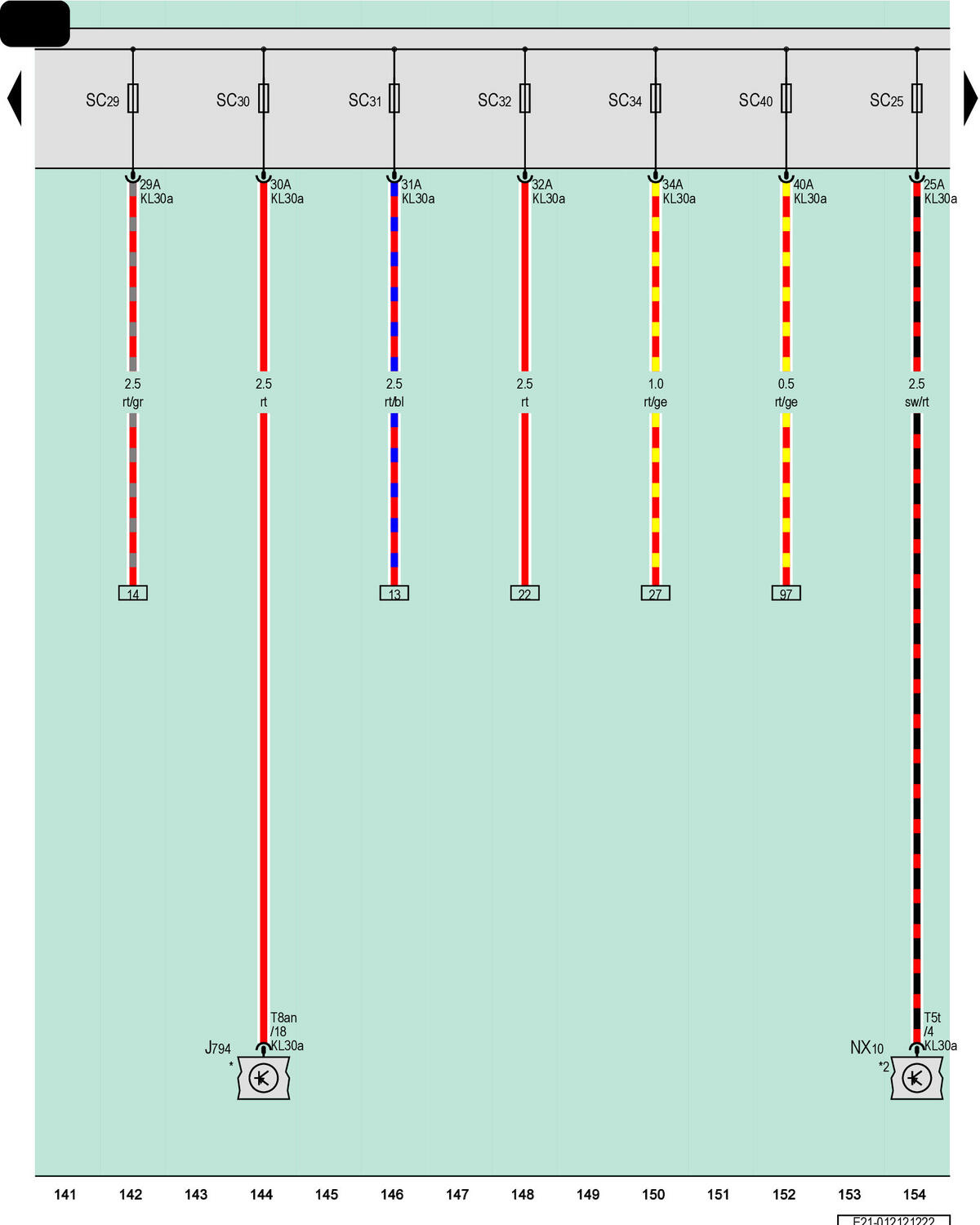

Information Electronics Control Module 1, Left Front Seat Belt, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

NX10

Left Front Seat Belt

SC

Fuse Panel C

SC25

Fuse 25 (On Fuse Panel C)

SC29

Fuse 29 (On Fuse Panel C)

SC30

Fuse 30 (On Fuse Panel C)

SC31

Fuse 31 (On Fuse Panel C)

SC32

Fuse 32 (On Fuse Panel C)

SC34

Fuse 34 (On Fuse Panel C)

SC40

Fuse 40 (On Fuse Panel C)

T5t

5-Pin Connector, Naturally Cloudy

T8an

8-Pin Connector, Black

*

Refer to the Applicable Multimedia System Wiring Diagram

*2

Refer to Applicable Airbag Wiring Diagram
