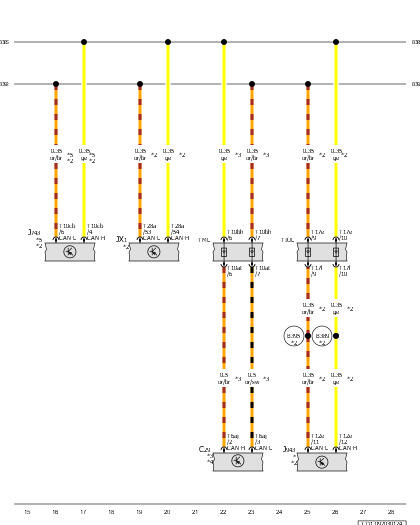

Starter Generator, Electric Drive Power And Control Electronics, Dual-Clutch Transmission MECHATRONIC, Engine Sound Generator Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

C29

Starter Generator

JX1

Electric Drive Power and Control Electronics

J743

Dual-Clutch Transmission Mechatronic

J943

Engine Sound Generator Control Module

T6aj

6-Pin Connector, Brown

T10at

10-Pin Connector, Black

T10bh

10-Pin Connector, Black

T10cb

10-Pin Connector, Black

T12e

12-Pin Connector, Black

T17e

17-Pin Connector, Green

T17l

17-Pin Connector, Green

T28a

28-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

TML

Coupling Point in Engine/Motor Compartment, Left

B385

Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)

B389

Powertrain CAN Bus High Connection 7 (in Main Wiring Harness)

B392

Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)

B395

Powertrain CAN Bus Low Connection 6 (in Main Wiring Harness)

*

Refer to the Applicable Engine Sound Generator Wiring Diagram

*2

For Vehicles with Hybrid Drive

*3

For Vehicles with 48 V Hybrid System

*4

Refer to Applicable Battery Wiring Diagram

*5

Refer to Applicable Wiring Diagram for Automatic Transmission (DSG)
