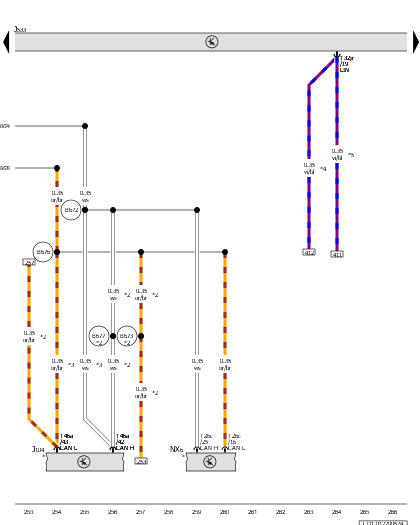

Abs Control Module, Data Bus On Board Diagnostic Interface, Brake Booster
J104
ABS Control Module
J533
Data Bus on Board Diagnostic Interface
NX6
Brake Booster
T26c
26-Pin Connector, Black
T32jr
32-Pin Connector, Black
T46a
46-Pin Connector, Black
B672
Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B673
Suspension/Instrument Cluster CAN Bus High Connection 2 (in Main Wiring Harness)
B674
Suspension/Instrument Cluster CAN Bus High Connection 3 (in Main Wiring Harness)
B676
Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
B677
Suspension/Instrument Cluster CAN Bus Low Connection 2 (in Main Wiring Harness)
B678
Suspension/Instrument Cluster CAN Bus Low Connection 3 (in Main Wiring Harness)
*
Refer to Applicable Brake System Wiring Diagram
*2
For RHD Vehicles
*3
For LHD Vehicles
*4
For Vehicles Without Heated Steering Wheel
*5
For Vehicles with Heated Steering Wheel
