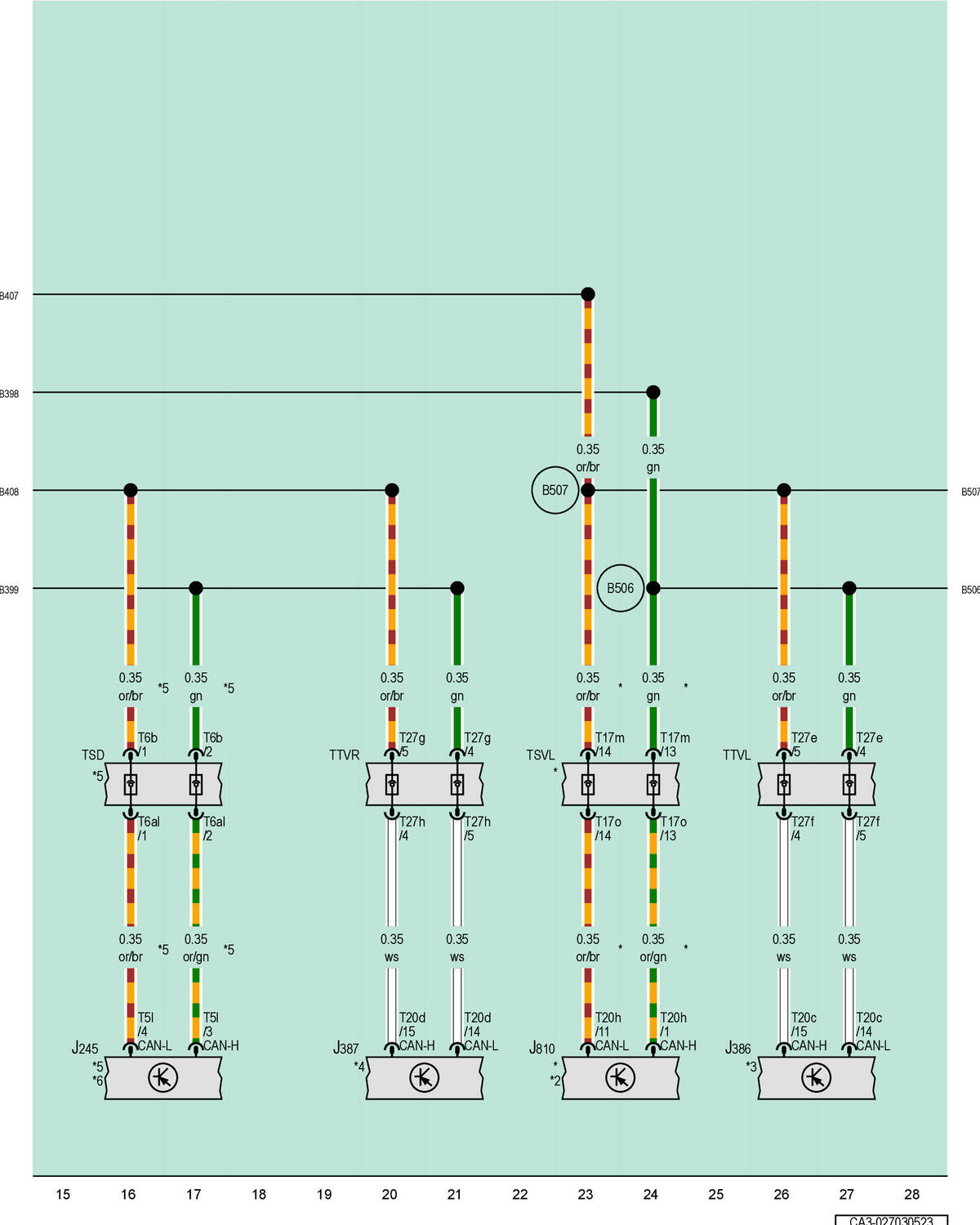

Sunroof Control Module, Driver Door Control Module, Front Passenger Door Control Module, Driver Seat Adjustment Control Module
J245
Sunroof Control Module
J386
Driver Door Control Module
J387
Front Passenger Door Control Module
J810
Driver Seat Adjustment Control Module
T5l
5-Pin Connector, Black
T6al
6-Pin Connector, Black
T6b
6-Pin Connector, Black
T17m
17-Pin Connector, Red
T17o
17-Pin Connector, Red
T20c
20-Pin Connector, White
T20d
20-Pin Connector, White
T20h
20-Pin Connector, Black
T27e
27-Pin Connector, Black
T27f
27-Pin Connector, Black
T27g
27-Pin Connector, Black
T27h
27-Pin Connector, Black
TSD
Sunroof Coupling Point
TSVL
Left Front Seat Coupling Station
TTVL
Left Front Door Coupling Point
TTVR
Right Front Door Coupling Point
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
B506
Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507
Comfort CAN Bus Low Connection (in Interior Wiring Harness)
*
Driver Memory Seat
*2
Refer to Applicable Seat Adjustment Wiring Diagram
*3
Refer to Applicable Driver Door Control Module Wiring Diagram
*4
Refer to Applicable Front Passenger Door Control Module Wiring Diagram
*5
For Vehicles with a Sunroof
*6
Refer to the Applicable Sunroof Wiring Diagram
