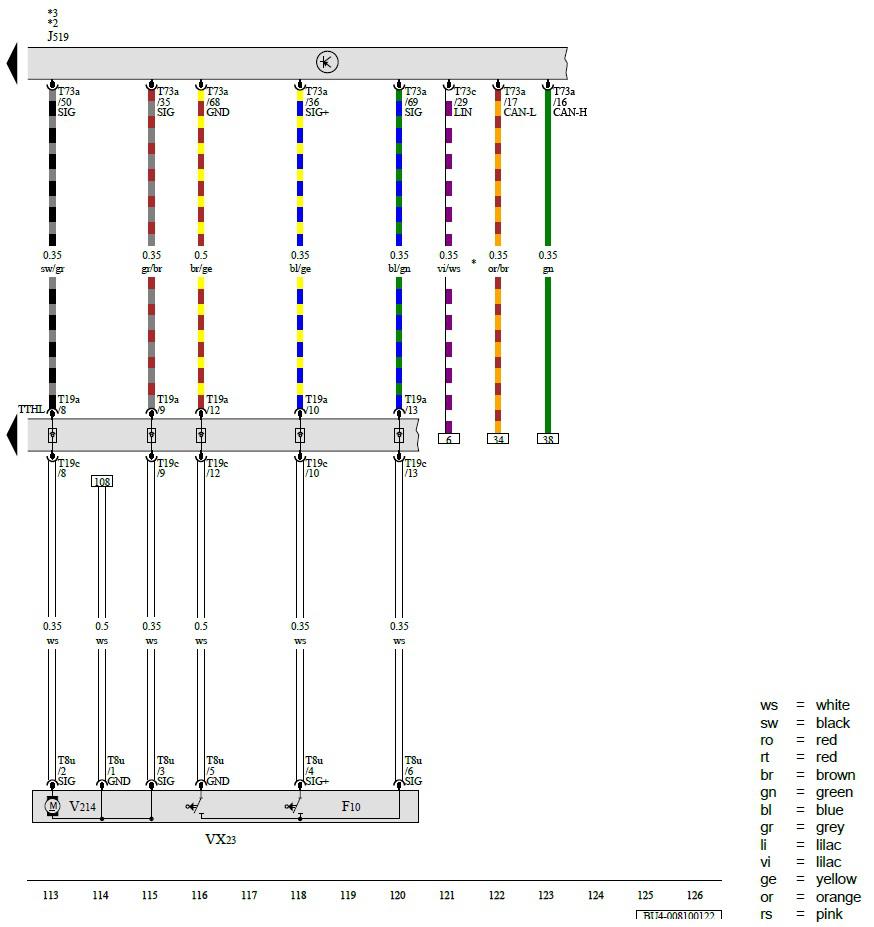

Vehicle Electrical System Control Module, Left Rear Door Lock Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F10 -  Left Rear Door Contact Switch

J519 -  Vehicle Electrical System Control Module

T8u -  8-Pin Connector, Black

T19a -  19-Pin Connector, Black

T19c -  19-Pin Connector, Black

T73a -  73-Pin Connector, Black

T73c -  73-Pin Connector, Black

TTHL -  Left Rear Door Coupling Point

VX23 -  Left Rear Door Lock Unit

V214 -  Left Rear Central Locking -Lock- Motor

* -  For Vehicles with Ambient Lighting

*2 -  Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior

*3 -  Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
