Power Steering Control Module

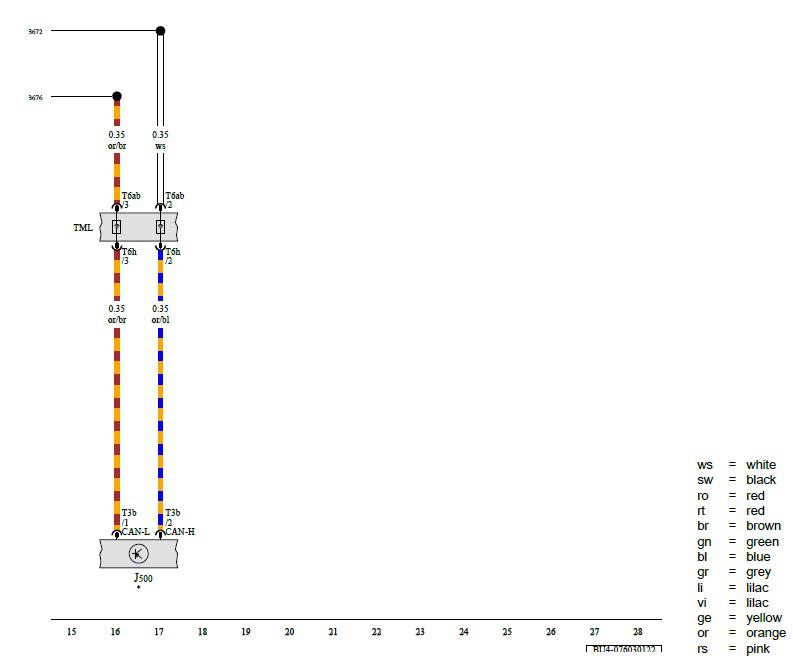

G00618764Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J500 -  Power Steering Control Module

T3b -  3-Pin Connector, Black

T6ab -  6-Pin Connector, Black

T6h -  6-Pin Connector, Black

TML -  Coupling Point in Engine/Motor Compartment, Left

B672 -  Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)

B676 -  Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)

* -  For Vehicles with Separate Data Bus On Board Diagnostic Interface
