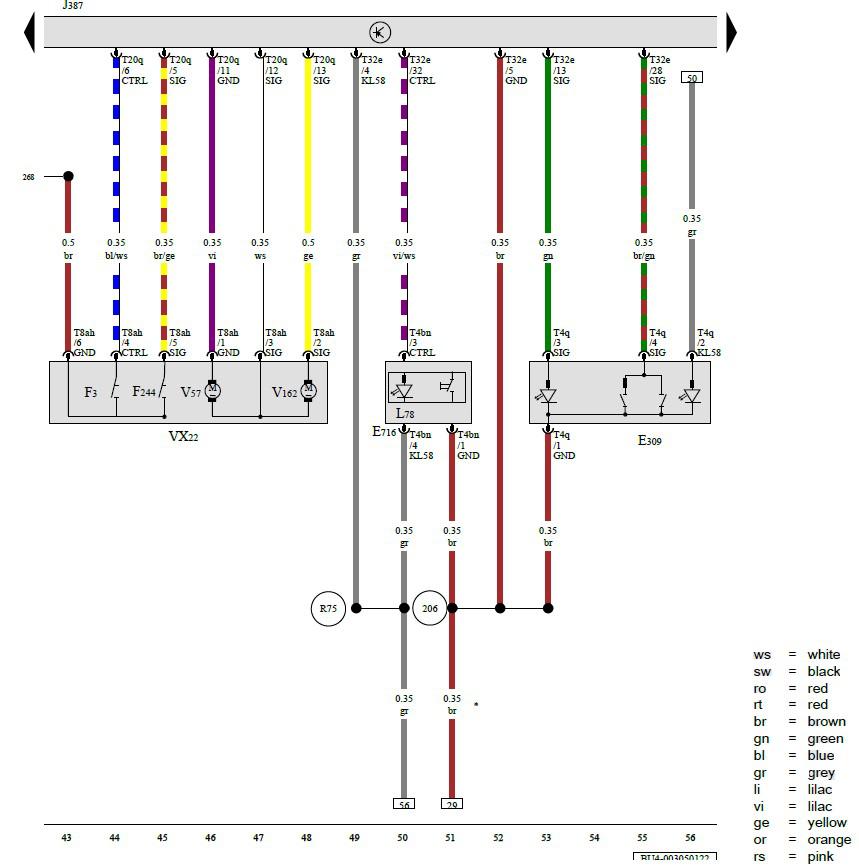

Front Passenger Interior Locking Button, Front Passenger Power Window Button, Front Passenger Door Control Module, Front Passenger Door Lock Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E309  Front Passenger Interior Locking Button

E716  Front Passenger Power Window Button

F3  Front Passenger Door Contact Switch

F244  Front Passenger Door Central Locking -Safe- Function Actuator

J387  Front Passenger Door Control Module

L78  Mirror Adjustment Switch Illumination Bulb

T4bn  4-Pin Connector, Black

T4q  4-Pin Connector, Blue

T8ah  8-Pin Connector, Black

T20q  20-Pin Connector, White

T32e  32-Pin Connector, Blue

VX22  Front Passenger Door Lock Unit

V57  Front Passenger Door Central Locking System Motor

V162  Front Passenger Central Locking -Safe- Motor

206  Ground Connection (in Front Passenger Door Wiring Harness)

268  Ground Connection 2 (in Front Passenger Door Wiring Harness)

R75  Connection 58d (in Door Control Module Wiring Harness) 1

*  Depending on Equipment
