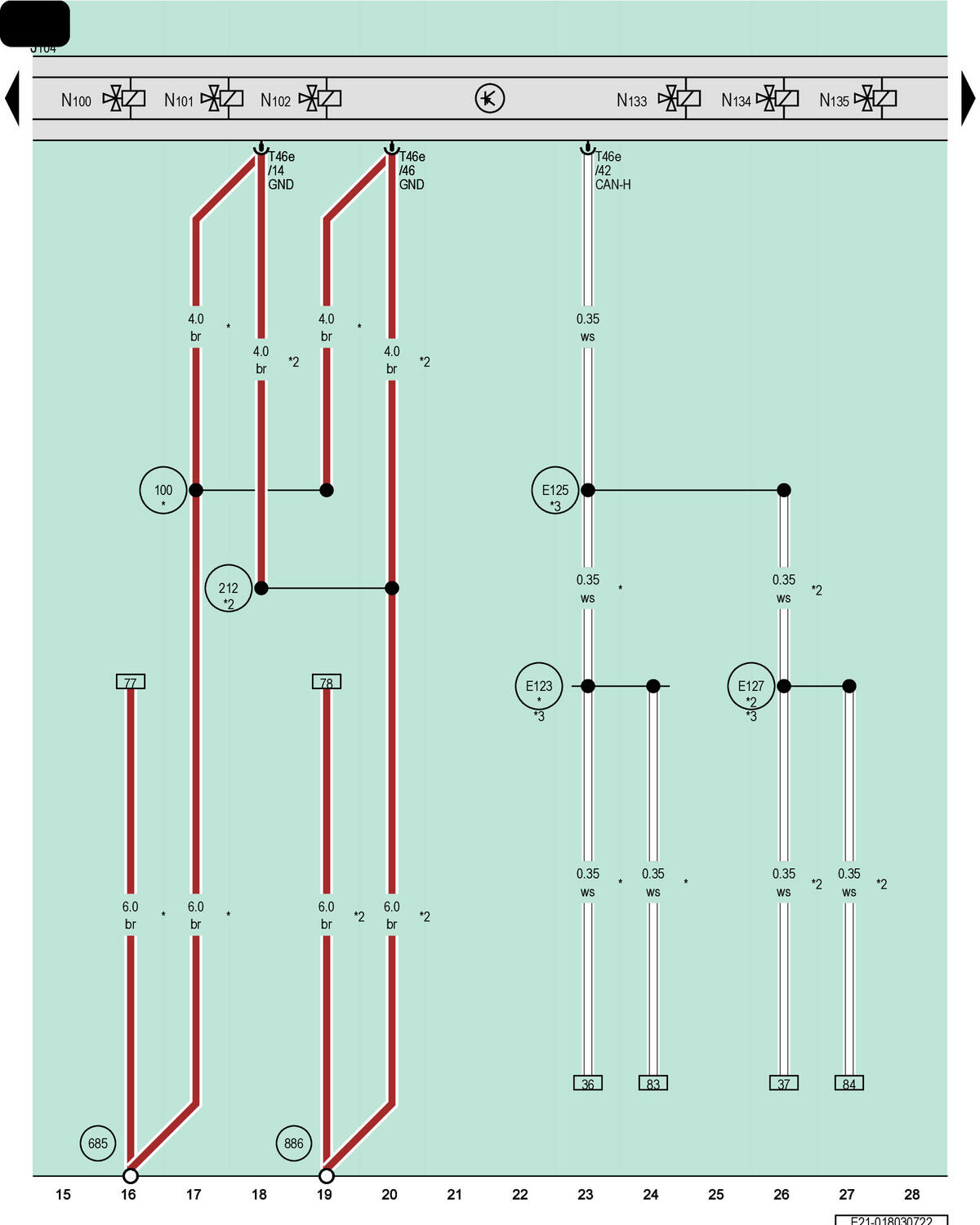

Abs Control Module
J104
ABS Control Module
N100
Right Front ABS Outlet Valve
N101
Left Front ABS Inlet Valve
N102
Left Front ABS Outlet Valve
N133
Right Rear ABS Inlet Valve
N134
Left Rear ABS Inlet Valve
N135
Right Rear ABS Outlet Valve
T46e
46-Pin Connector, Black
100
Ground Connection 1 (in ABS Wiring Harness)
212
Ground Connection 2 (in ABS Wiring Harness)
685
Ground Connection 1 on Right Front Longitudinal Member
886
Ground Connection 6 on Left Front Longitudinal Member
E123
CAN Bus Drive High Connection 1 (in Engine Wiring Harness)
E125
CAN Bus Drive High Connection 2 (in Engine Wiring Harness)
E127
CAN Bus Drive High Connection 3 (in Engine Wiring Harness)
*
For LHD Vehicles
*2
For RHD Vehicles
*3
Refer to the Applicable Suspension CAN Bus Network Data Bus Wiring Diagram
