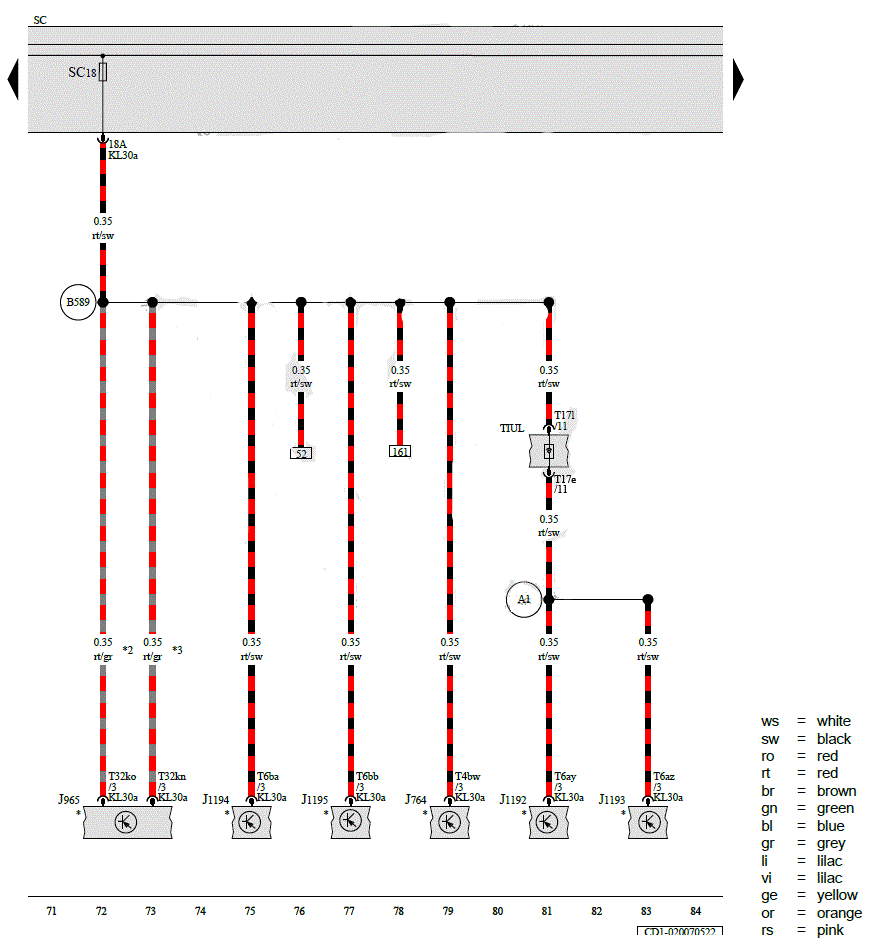

Electronic Steering Column Lock Control Module, Access/ Start System Interface, Burglary Protection Control Module 2, Burglary Protection Control Module 3, Burglary Protection Control Module 4, Burglary Protection Control Module 5, Fuse Panel C
J764
Electronic Steering Column Lock Control Module
J965
Access/Start System Interface
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
J1194
Burglary Protection Control Module 4
J1195
Burglary Protection Control Module 5
SC
Fuse Panel C
SC18
Fuse 18 (On Fuse Panel C)
T4bw
4-Pin Connector, Black
T6ay
6-Pin Connector, Black
T6az
6-Pin Connector, Black
T6ba
6-Pin Connector, Black
T6bb
6-Pin Connector, Black
T17e
17-Pin Connector, Green
T17l
17-Pin Connector, Green
T32kn
32-Pin Connector, Gray
T32ko
32-Pin Connector, Gray
TIUL
Coupling Point in Interior, Bottom Left
A1
Positive Connection 30a (in Instrument Panel Wiring Harness)
B589
Connection 49A (in Interior Wiring Harness)
*
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*2
For LHD Vehicles
*3
For RHD Vehicles
