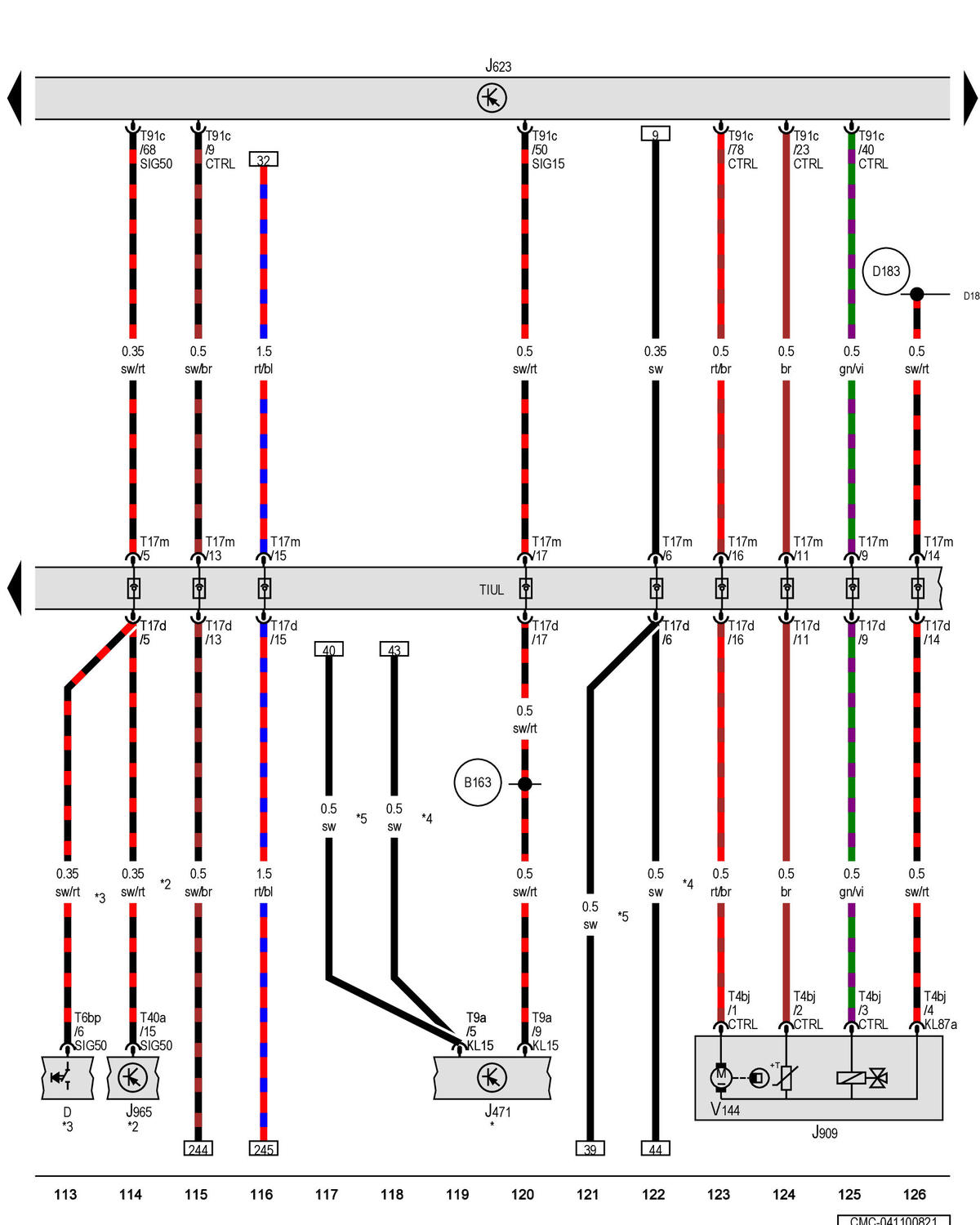

Ignition/Starter Switch, Remote Start System Relay, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D

Ignition/Starter Switch

J471

Remote Start System Relay

J623

Engine/Motor Control Module

J909

Fuel Tank Leak Detection Control Module

J965

Access/Start System Interface

T4bj

4-Pin Connector, Black

T6bp

6-Pin Connector, Black

T9a

9-Pin Connector, Gray

T17d

17-Pin Connector, Blue

T17m

17-Pin Connector, Blue

T40a

40-Pin Connector, Black

T91c

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

V144

Leak Detection Pump

B163  Positive Connection 1 (15) (in Interior Wiring Harness)

D183  Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)

*  Refer to Applicable Wiring Diagram

*2  For Vehicles with Access/Start Authorization System

*3  For Vehicles Without Access/Start Authorization System

*4  For Vehicles with Engine Remote Start Setup

*5  For Vehicles with Engine Remote Start
