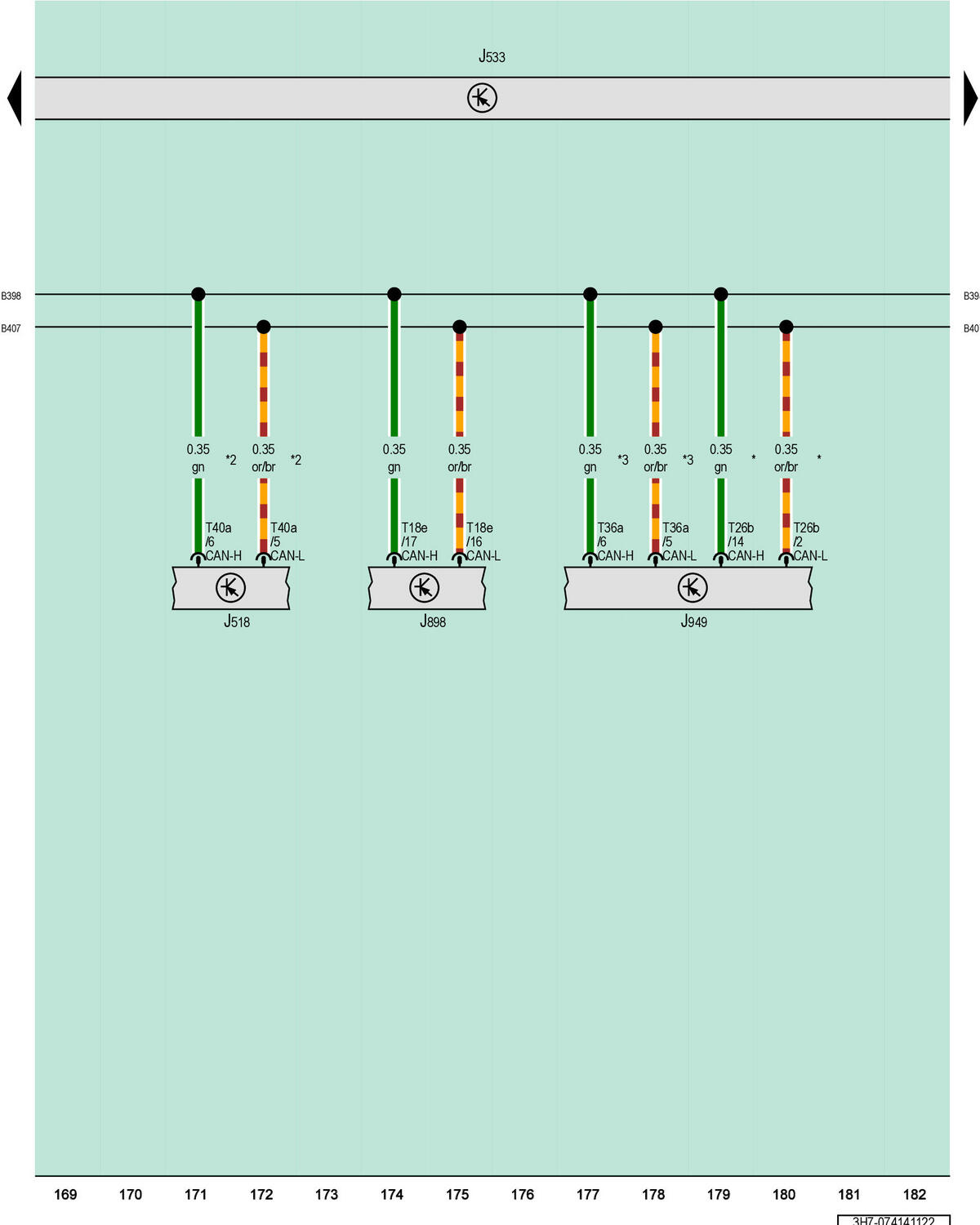

Access/Start Authorization Control Module, Data Bus On Board Diagnostic Interface, Windshield Projection Head Up Display Control Module, Control Module For Emergency Call Module And Communication Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J518

Access/Start Authorization Control Module

J533

Data Bus on Board Diagnostic Interface

J898

Windshield Projection Head Up Display Control Module

J949

Control Module for Emergency Call Module and Communication Unit

T18e

18-Pin Connector, Naturally Cloudy

T26b

26-Pin Connector, Black

T36a

36-Pin Connector, Black

T40a

40-Pin Connector, Black

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

*

Through July 2019

*2

From November 2017

*3

From July 2019
