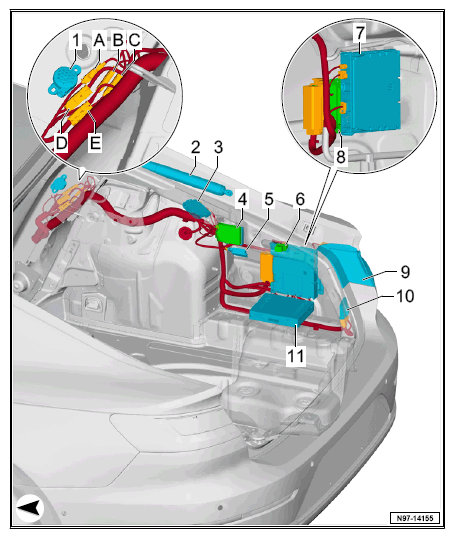

Rear, View from Left
- A - 2-Pin Connector -T2gr-, green/2-Pin Connector -T2bq-, green
- B - 2-Pin Connector -T2iu-, yellow/2-Pin Connector -T2kx-, yellow
- For models with TV Tuner
- C - 2-Pin Connector -T2ht-, yellow/2-Pin Connector -T2br-, yellow
- C - 2-Pin Connector -T2it-, purple/2-Pin Connector -T2bv-, purple
- For models with TV Tuner
- D - 10-Pin Connector -T10af-, black/10-Pin Connector -T10d-, black
- E - 4-Pin Connector -T4cq-, yellow/4-Pin Connector -T4t-
- For models with TV Tuner
- Rear parking aid warning buzzer -H15-
- -nicht verbaut-
- Mobile communication 2-way signal amplifier -J984-
- Auxiliary coolant heater radio frequency receiver -R149-
- Luggage compartment lamp -W3-
- Power pivoting trailer hitch button -E474-
- TV tuner -RX6-
- TV card reader -R204-
- Electronic damping control module -J250-
- Right tail lamp -MX4-
- Reducing agent heater control module -J891-
- Not for NAR
