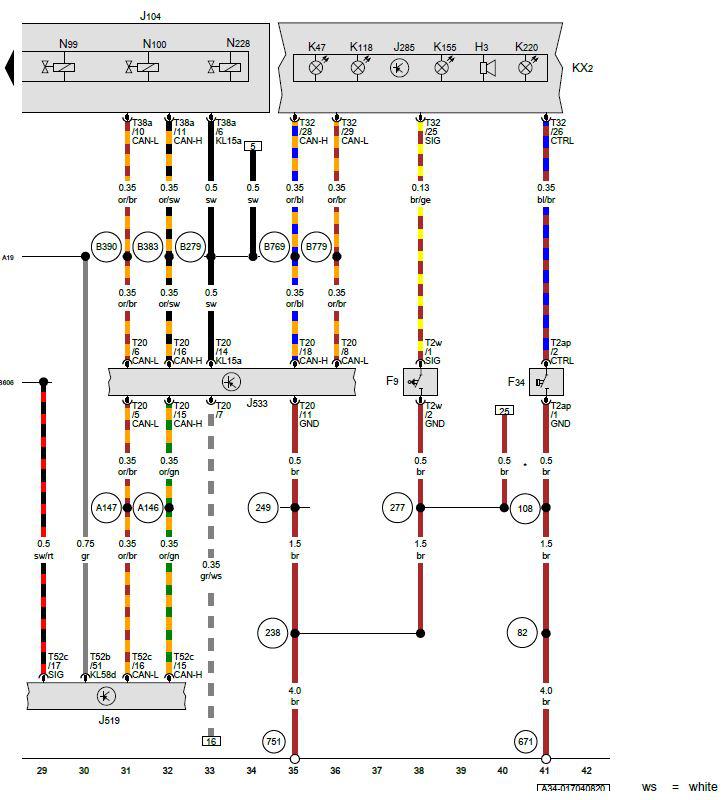

Parking Brake Indicator Lamp Switch, Brake Fluid Level Warning Switch, ABS Control Module, Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface
F9 - Parking Brake Indicator Lamp Switch
F34 - Brake Fluid Level Warning Switch
H3 - Warning Buzzer and Tone
J104 - ABS Control Module
J285 - Instrument Cluster Control Module
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface, In the Left Footwell, near the Center Console
KX2 - Instrument Cluster
K47 - ABS Indicator Lamp
K118 - Brake System Indicator Lamp
K155 - ASR/ESP Indicator Lamp
K220 - Tire Pressure Monitoring Display Indicator Lamp
N99 - Right Front ABS Inlet Valve
N100 - Right Front ABS Outlet Valve
N228 - Driving Dynamics Regulation High Pressure Switch Valve 2
T2ap - 2-Pin Connector, Black
T2w - 2-Pin Connector, Black
T20 - 20-Pin Connector, Red
T32 - 32-Pin Connector, Blue
T38a - 38-Pin Connector, Brown
T52b - 52-Pin Connector, Naturally Cloudy
T52c - 52-Pin Connector, Brown
82 - Ground Connection 1 (in Left Front Wiring Harness)
108 - Ground Connection 2 (in Left Front Wiring Harness)
238 - Ground Connection 1 (in Interior Wiring Harness)
249 - Ground Connection 2 (in Interior Wiring Harness)
277 - Ground Connection 3 (in Interior Wiring Harness)
671 - Ground Connection 1 on Left Front Longitudinal Member
751 - Ground Connection 2 on Right A-Pillar
A19 - Connection 58d (in Instrument Panel Wiring Harness
A146 - Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)
A147 - Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B279 - Positive Connection 3 (15a) (in Main Wiring Harness)
B383 - Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)
B390 - Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)
B606 - Connection 2 (in Interior Wiring Harness)
B769 - Diagnostic CAN Bus High Connection 2 (in Main Wiring Harness)
B779 - Diagnostic CAN Bus Low Connection 2 (in Main Wiring Harness)
* - For Vehicles with Tire Pressure Monitoring
