Component Location Overview - Seals

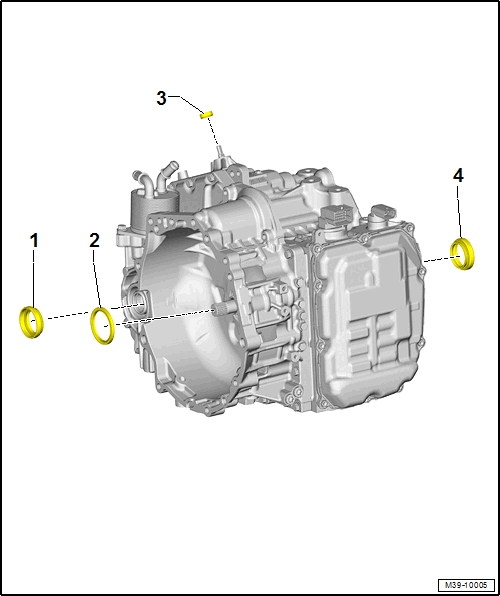

GWWM39-10005

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Seal
- For the right flange shaft. To replace. Refer to RIGHT SEAL, REPLACING .
Torque Converter Seal
- Replacing. Refer to TORQUE CONVERTER SEAL, REMOVING AND INSTALLING .
Selector Shaft Seal
- Replacing. Refer to SELECTOR SHAFT SEAL, REPLACING .
Left Seal
- Replacing. Refer to LEFT SEAL, REPLACING .
