Evaporator, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
-- Disassemble the heater and A/C unit. Refer to HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .

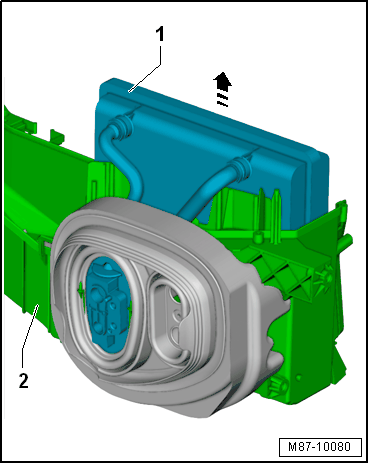

-- Remove the evaporator -1- in the direction of -arrow- from the housing -2-.
