Condensation Water Drain, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right footwell center console trim panel. Refer to CENTER CONSOLE .

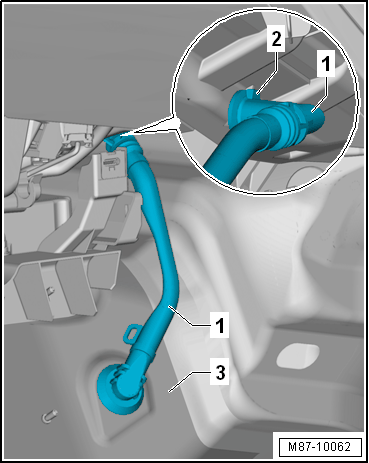

-- Loosen the carpet in the right footwell and remove it until the condensation water drain -1- can be seen.

-- Remove the condensation water drain -1- with the connecting piece -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the condensation water drain -1- from the body -3-.
