Air Intake Duct, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel crossmember. Refer to INSTRUMENT PANEL .

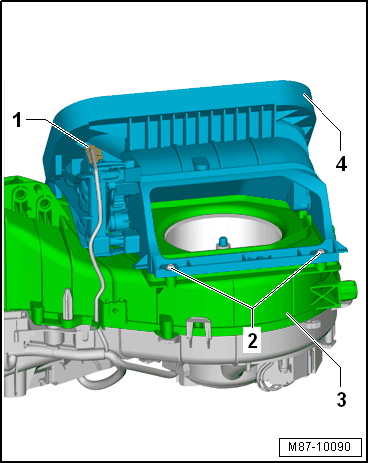

-- Disconnect the connector -1- and free up the wiring harness.
-- Remove the bolts -2-.
-- Loosen the heater and A/C unit and remove slightly from the bulkhead.
-- Remove the air intake duct -4- from the heater and A/C unit upper section -3-.
