Special Tools

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit: SMN372500

Fig 1: Identifying Used Oil Collection And Extraction Unit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Elbow Assembly Tool: T10118

Fig 2: Elbow Assembly Tool T10118
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Wedge Set - Wedge 2: T10383/2

Fig 3: Identifying Wedge Set
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Oil Drain Plug Assembly Tool: T10549
Cutting Tool: T10561

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket and Jointed Extension - 24mm: T40175

Fig 4: Identifying 24 MM Socket And Jointed Extension
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Chain Tensioner Locking Tool: T40265

Fig 5: Chain Tensioner Locking Tool T40265
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Oil Pressure Gauge Kit: VAG1342

Fig 6: Identifying Oil Pressure Gauge Kit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

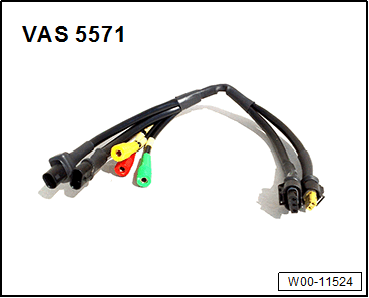

Vehicle Diagnostic Tester - Test Adapter - 2+3 Pin: VAS5571

Fig 7: Identifying Vehicle Diagnostic Tester - Test Adapter
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane - Drip Tray: VAS6208

Fig 8: Identifying Drip Tray
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Applicator Gun: VAS6966

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
