Instrument Panel, Removing And Installing: Installing

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Check all the fasteners for damage and replace if necessary.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

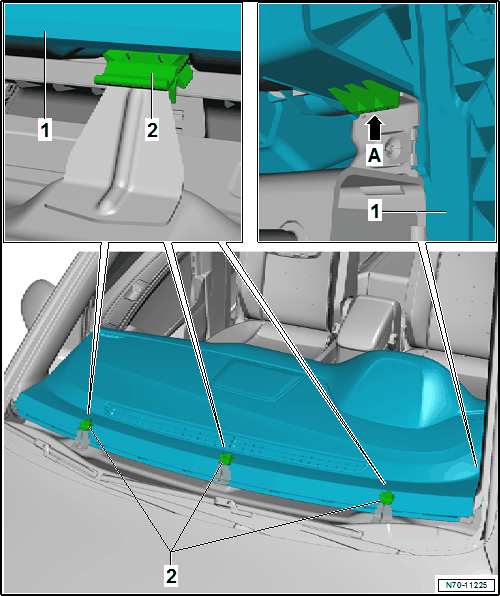

-- Make sure that the mounts -2- are secured inside the body before installing the instrument panel -1-.

-- With a second technician push the instrument panel -1- in the three mounts -2- in the windshield transition area.

-- Insert the instrument panel using the left and right tab -arrow A- so it exactly fits in the guide holes.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

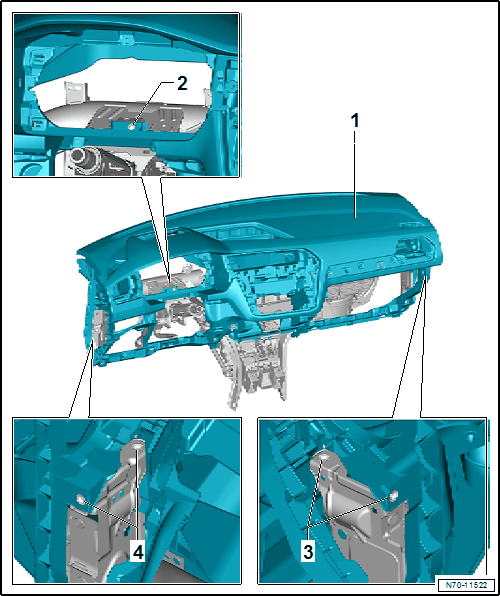

-- Tighten the instrument panel -1- with the bolt -2- on the crossmember.

-- On the left side, install the instrument panel -1- on the crossmember using the two screws -4-.

-- On the right side, install the instrument panel -1- on the crossmember using the two screws -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

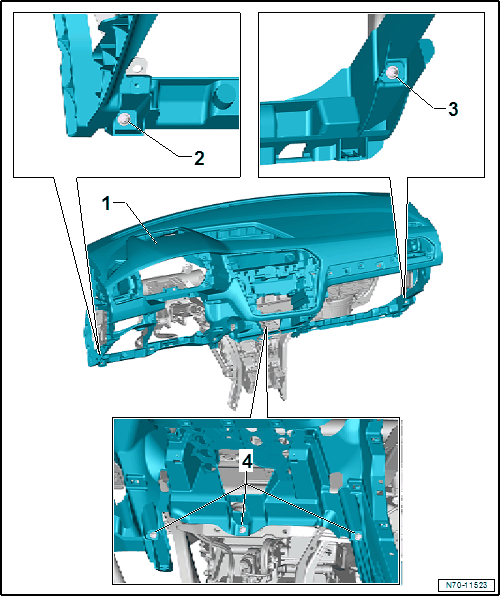

-- On the left side install the instrument panel -1- with the bolt -2- on the crossmember.

-- For LHD vehicles, install the instrument panel -1- on the crossmember using the screw -3- on the right side.

NOTE:

The bolt -3- for securing the instrument panel -1- is not present on RHD vehicles.

-- In the center, install the instrument panel -1- on the crossmember using the three screws -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

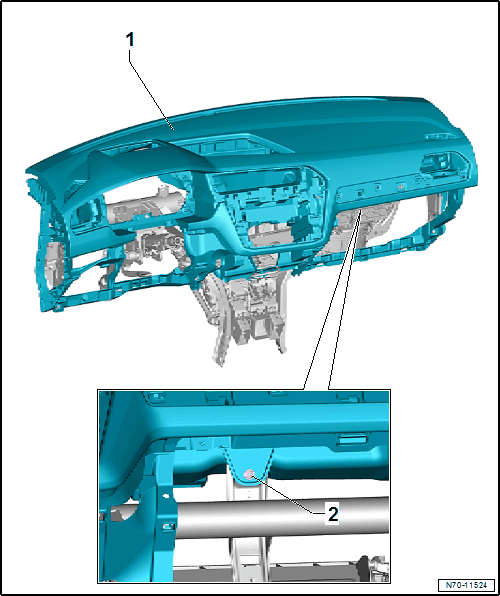

-- Tighten the instrument panel -1- with the bolt -2- on the crossmember.

Install in reverse order of removal.
