Instrument Panel CROSSMEMBER, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY .

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the left plenum chamber cover. Refer to BULKHEAD .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

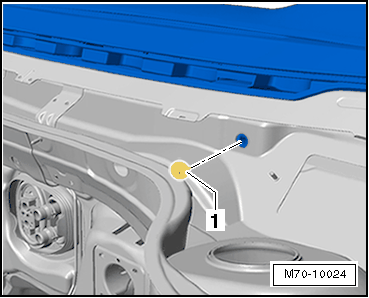

-- Remove the bolt -1- inside the plenum chamber.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

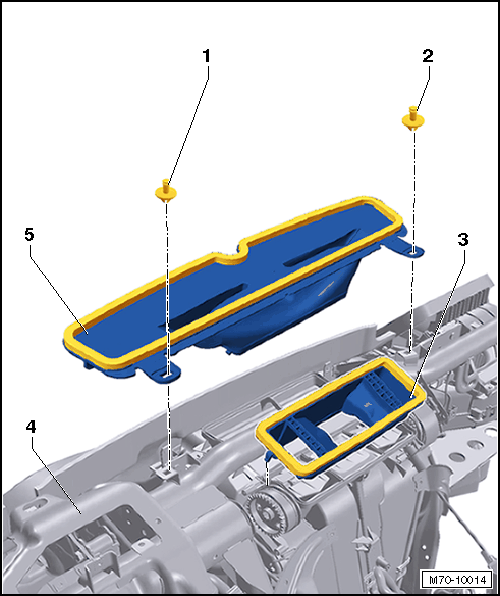

-- Remove the expanding pins -1 and 2-.

-- Remove the defroster duct -5- from the instrument panel crossmember -4-.

-- Remove the air distributor -3- from the heater and A/C unit.

-- Remove the steering wheel. Refer to STEERING WHEEL .

-- Remove the Steering Column Electronics Control Module -J527-. Refer to STEERING COLUMN SWITCH MODULE .

-- Remove the steering column from the crossmember. Refer to STEERING COLUMN .

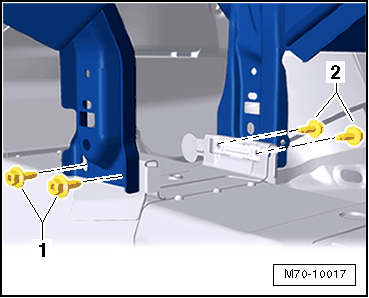

-- Remove the left bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right bolts -2-.

On the Driver Side:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

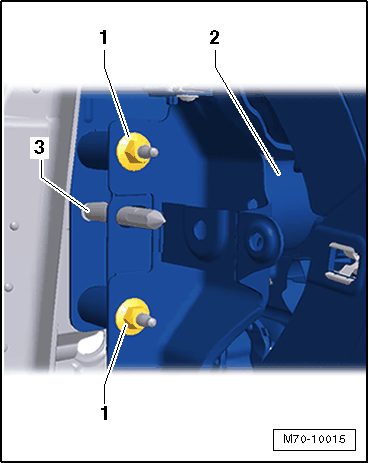

Mark the height and side position of the crossmember -2- in the vehicle around the nuts -1- and centering pin -3-.

-- Remove the nuts -1-.

On the Front Passenger Side:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

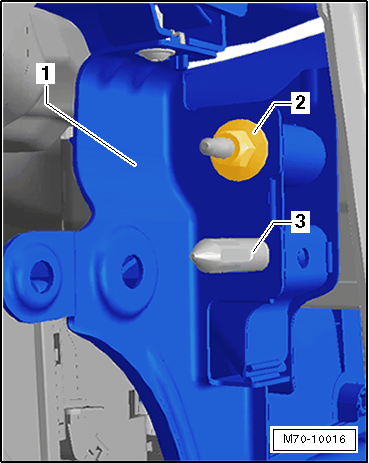

Mark the height and side position of the crossmember -1- in the vehicle around the nuts -2- and centering pin -3-.

-- Remove the nut -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

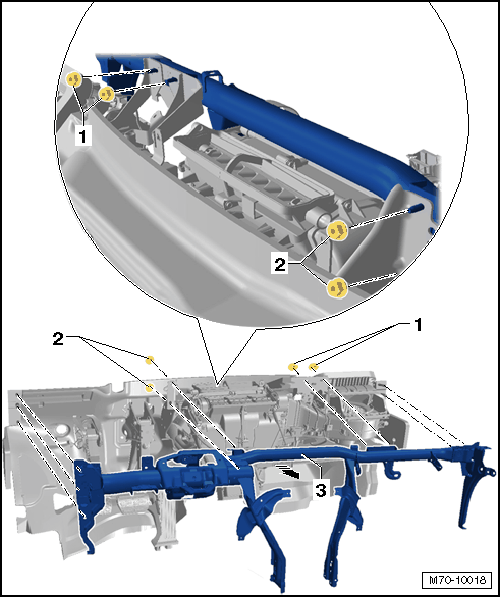

-- Remove the harness connector mountings from the crossmember, depending on the equipment level of the vehicle.

-- Remove the nuts -1-.

-- Remove the nuts -2-.

-- Loosen the instrument panel crossmember -3- in the direction of the -arrow- and pull it slightly to the rear.

-- Carefully remove the instrument panel crossmember -3- from the vehicle with a second technician.
