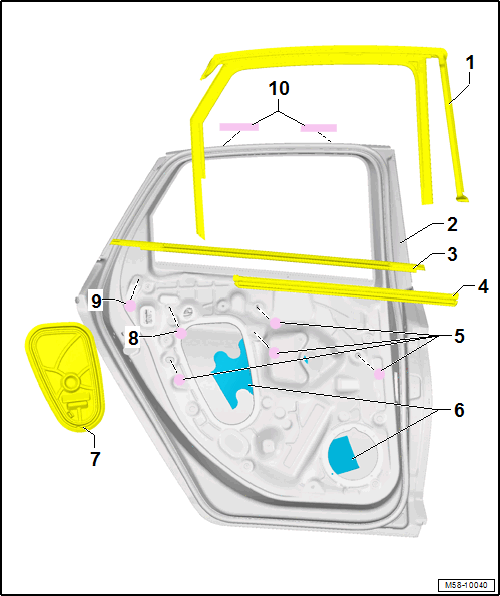

Overview - Door Components
NOTE:
The illustration shows the left side. The right side is done the same.
- Window Guide
- Removing and Installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING .
- Rear Door
- Removing and Installing. Refer to DOOR, REMOVING AND INSTALLING .
- Adjusting. Refer to DOOR, ADJUSTING .
- Outer Window Shaft Strip
- Removing and Installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
- Inner Window Shaft Strip
- Removing and Installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
- Sticker
- 40 mm diameter
- Use commercially available duct tape if needed
- Insulation
- Installing:
-- Cut to size if necessary, 250 mm x 160 mm. Position as shown in the image.
-- Warm up using the Wiring Harness Repair Set - Hot Air Blower: VAS1978/14A and then press firmly onto the outer door panel.
- Self-adhesive
- Installing:
- Door Inner Cover
- Removing and Installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
- Sticker
- 19 mm diameter
- Use commercially available duct tape if needed
- Sticker
- 28 mm diameter
- Use commercially available duct tape if needed
- Sticker
- 15 mm x 50 mm
- Use commercially available duct tape if needed
