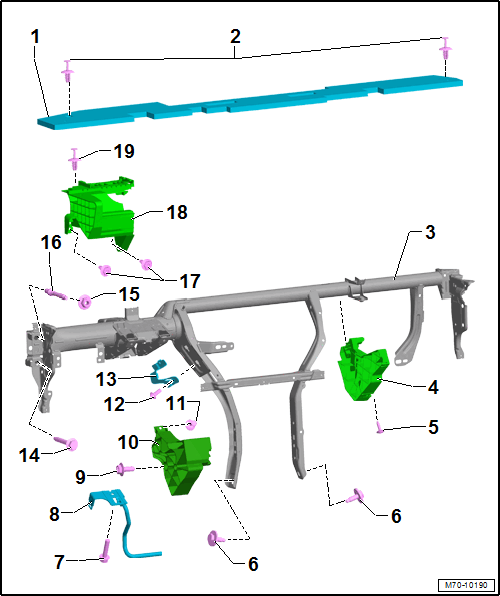

Overview - Instrument Panel CROSSMEMBER
- Instrument Panel Damper
- Expanding Rivet
- Quantity: 2
- Instrument Panel Crossmember
- Removing and Installing. Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
- Impact Absorber
- Removing and Installing. Refer to FRONT PASSENGER SIDE IMPACT ABSORBER, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Bolt
- 20 Nm
- Quantity: 2
- Bolt
- 20 Nm
- Crash Bolster
- Removing and Installing. Refer to CRASH BOLSTER, REMOVING AND INSTALLING .
- Bolt
- 4.5 Nm
- Impact Absorber
- Removing and Installing. Refer to IMPACT ABSORBER, REMOVING AND INSTALLING, LOWER DRIVER SIDE .
- Expanding Rivet
- Bolt
- 2.5 Nm
- Quantity: 2
- Bracket
- For the impact absorber. Refer to -item ) OVERVIEW - INSTRUMENT PANEL CROSSMEMBER - Impact Absorber
- Bolt
- 20 Nm
- Only driver side
- Nut
- 20 Nm
- Quantity: 2
- Threaded Pins
- 20 Nm
- Quantity: 2
- Bolt
- 4.5 Nm
- Quantity: 2
- Impact Absorber
- Removing and Installing. Refer to IMPACT ABSORBER, REMOVING AND INSTALLING, UPPER DRIVER SIDE .
- Expanding Rivet
