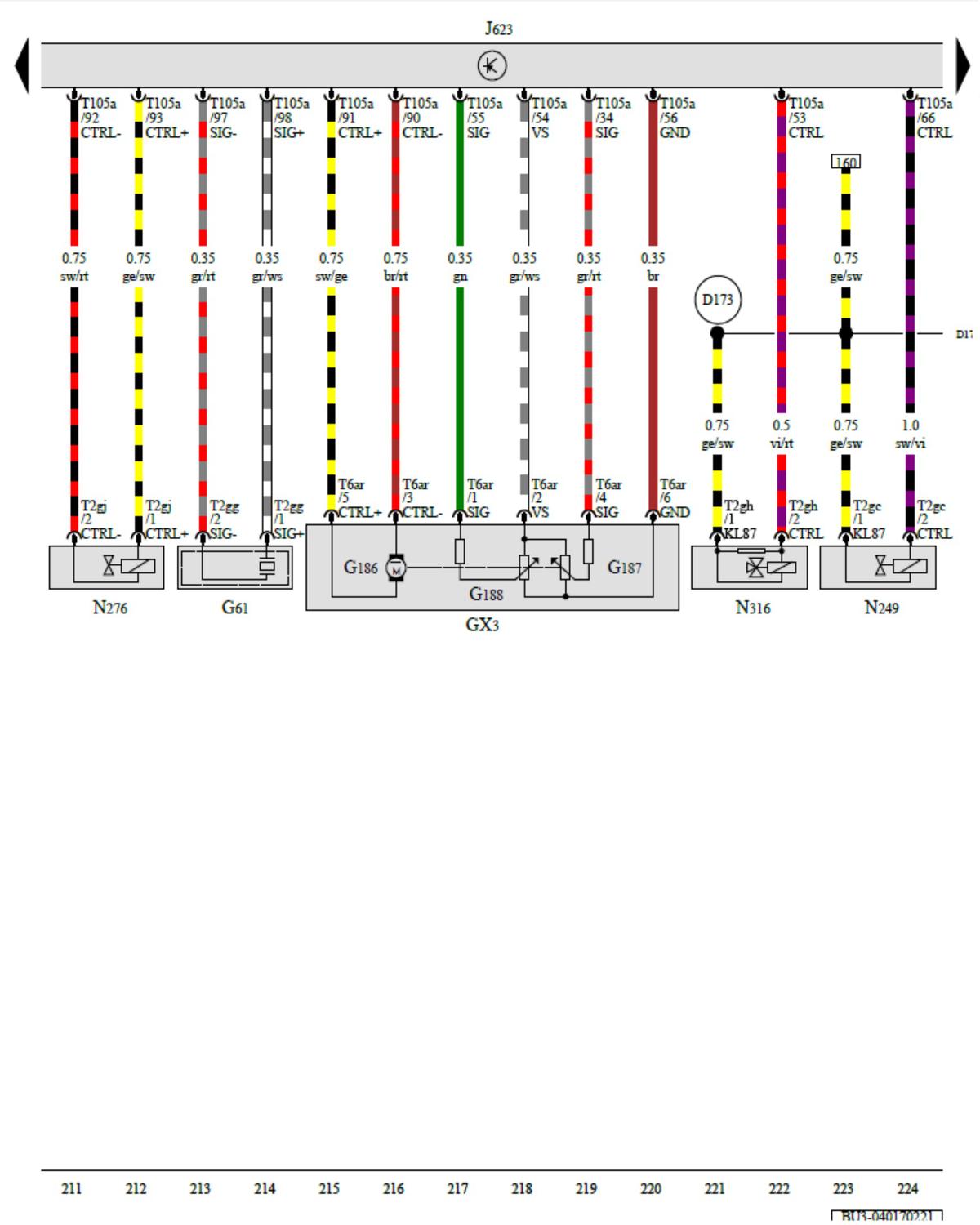

Throttle Valve Control Module, Knock Sensor 1, Engine/ Motor Control Module, Turbocharger RECIRCULATION Valve, Fuel Pressure Regulator Valve, Intake Manifold Runner Control Valve: Notes

GWWBU3-040171217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
