Electric Drive Power And Control Electronics, Removing And Installing, AWD: Installing

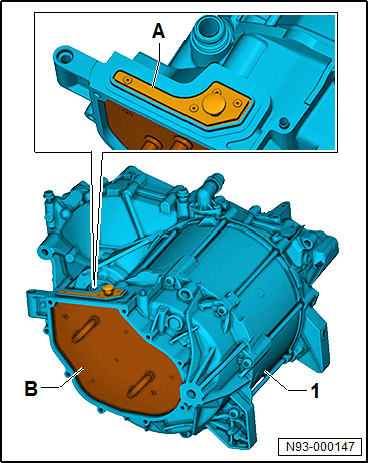

-- Close the openings at the three-phase current drive -1- using Cover: T10643/2 -A- and Cover: T10643/1 -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Clean the sealing surfaces:

CAUTION:

Risk of injury due to chemical cleaning solutions. Chemical cleaning solutions can be extremely flammable and cause eye and skin irritation.

- Wear protective eyewear, safety gloves and respirators.

- Pay attention to the safety data sheet and operating instructions of the chemical.

-- Remove the sealant with commercially available, chemical sealant remover and commercially available plastic scraper.

-- Remove the sealant residue with a commercially available brass brush.

-- Carefully clean the opening for the connecting piece on the three-phase current drive -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

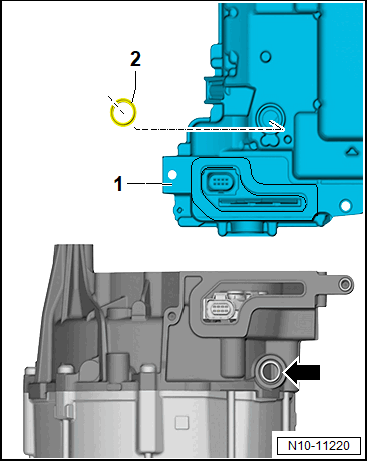

-- Coat the new connecting piece -2- with lithium grease and insert in the power electronics -1-.

Lithium lubricating grease. Refer to Parts Information.

-- Remove the Cover: T10643/2 -A- and Cover: T10643/1 -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the three-phase current drive sealing surfaces -arrow- and the power electronics using Clean with Cleaning Solution "D 291 091 A1".

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

The cleaning solution "D 291 091 A1" acts as an activator before application of the sealant and is decisive for a functional sealant bond.

Condition

Allow the sealing surfaces to dry for 10 minutes.

Applying sealant for three-phase current drive:

Sealant. Refer to the Parts Information.

-- Cut free the tube nozzle on the front mark so that the diameter is 3 mm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

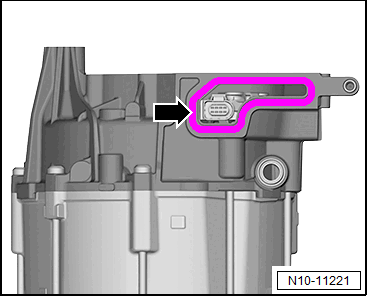

-- Apply the sealant -arrow- to the clean sealing surface on the three-phase current drive, as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Condition

Sealant bead thickness: approximately 2 through 3 mm
Within 5 minutes of applying the sealant, install the power electronics and tighten the screws.

-- Position the power electronics -1- on the three-phase current drive. At the same time pay attention to the connector.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts -arrows- evenly hand-tight in a diagonal sequence.

-- Tighten the bolts -arrows-.

Prepare the Anti-Rotation: T10614 for tightening the bolts for the busbars:

-- Loosen the bolts -C- for the holding plates -B- one turn.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Condition

The holding plates -B- must be movable.

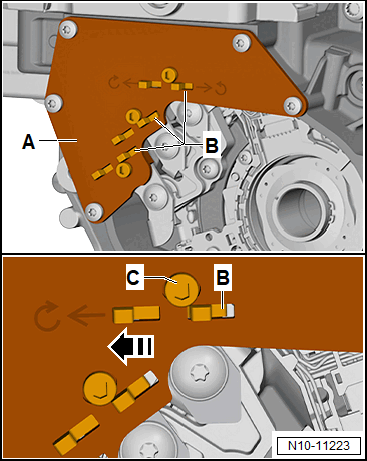

-- Install the anti-rotation protector -A- hand tight to the three-phase current drive, as shown, using the bolts from the cover -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- In order to tighten the bolts of the busbars, press the holding plates -B- to the left and fasten the bolts -C- hand-tight.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

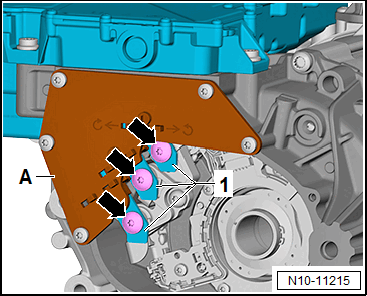

-- Tighten the bolts -arrows- for the busbars -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

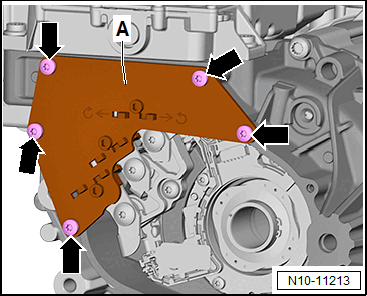

-- Remove the bolts -arrows- and remove the anti-rotation protector -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install cover:

-- Clean the three-phase current drive sealing surfaces -arrow- and the cover using Clean with Cleaning Solution "D 291 091 A1".

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

The Cleaning Solution "D 291 091 A1" is used to activate the surface before application of the sealant and is decisive for a functional sealant bond.

Condition

Allow the sealing surfaces to dry for 10 minutes.

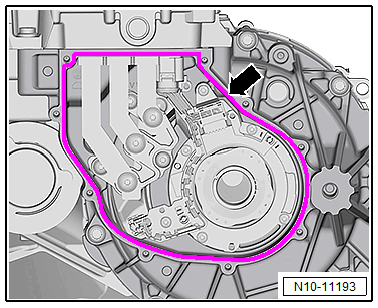

-- Apply the sealant -arrow- to the clean sealing surface on the three-phase current drive, as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sealant. Refer to the Parts Information.

Condition

Sealant bead thickness: approximately 2 through 3 mm
Within 5 minutes of applying the sealant, install the cover and tighten the screws.

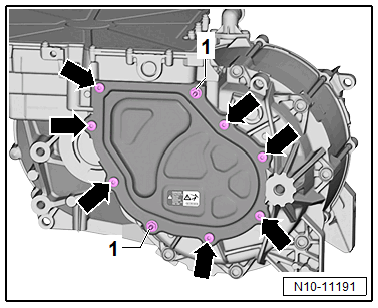

-- Attach the double bolts -1- and the bolts -arrows- and tighten. Tightening sequence. Refer to Overview - Electric Drive Power and Control Electronics JX1 or Overview - Electric Drive Power and Control Electronics JX1 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Perform the leak test. Refer to Electric Drive Motor Leak Test, Rear Motor .

Further installation is performed in reverse order of removal, while noting the following:

If the Electric Drive Power and Control Electronics -JX1- was replaced:

-- Perform the necessary Function/Functions using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

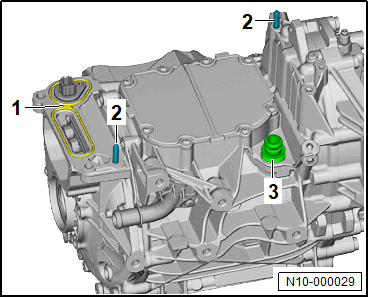

-- Replacing the seal -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the alignment pin -2-.

-- Remove the coolant connecting piece -3- from the three-phase current drive.

-- Carefully clean the opening for the coolant connecting piece on the three-phase current drive and on the power electronics.

-- Coat the new coolant connecting piece -3- with lithium lubricating grease and insert in the three-phase current drive.

Lithium lubricating grease. Refer to Parts Information.

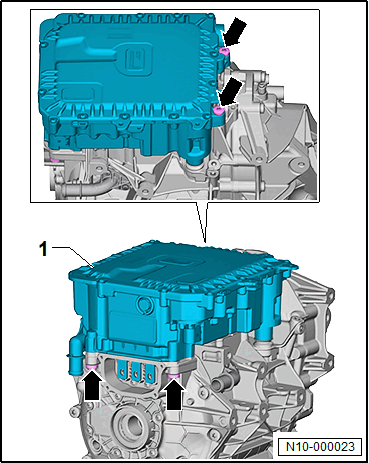

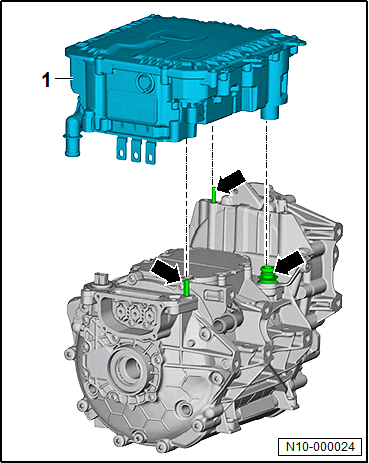

-- Position the power electronics -1- on the three-phase current drive. At the same time pay attention to the alignment pin and the coolant connecting piece -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts -arrows- evenly hand-tight in a diagonal sequence.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -arrows- to the required tightening specification.

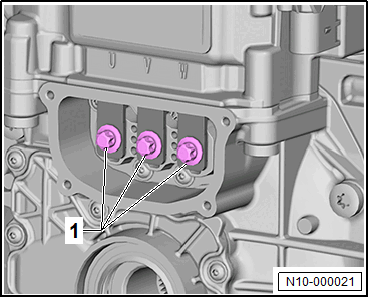

-- Tighten the bolts -1- for the busbars.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

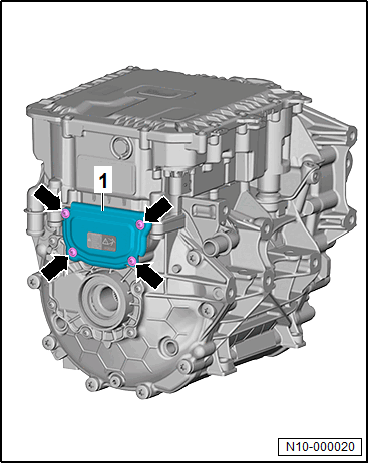

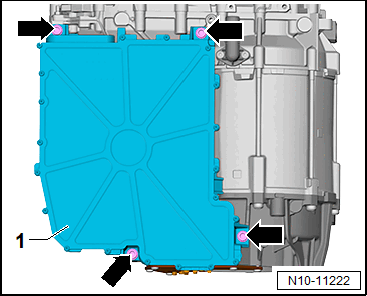

-- Position the new cover -1- and tighten the bolts -arrows- evenly in a diagonal sequence.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Further installation is performed in reverse order of removal, while noting the following:

If the Electric Drive Power and Control Electronics 2 -JX4- was replaced:

-- Perform the necessary Function/Functions using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation
